Anchorage onto deciduous teeth: effectiveness of early rapid maxillary expansion in increasing dental arch dimension and improving anterior crowding
Progress in Orthodontics volume 16, Article number: 22 (2015)
Anchorage onto permanent dentition is a common procedure in rapid maxillary expansion. However, replacing first permanent molars with the second deciduous molars seems to be an option to reduce some negative side effects during orthodontic treatment. The purpose of this study was to evaluate the dental effect of rapid maxillary expansion with anchorage exclusively onto deciduous teeth performed in the first period of transition.
Twenty patients with a lateral cross-bite treated exclusively by a Haas expander in early mixed dentition were retrospectively analyzed before treatment, at appliance removal, and at 21 months out of retention. The sagittal and transverse dimensions, together with the inter-canine arch and irregularity index, were digitally measured on scanned images of dental casts. The patients were compared with three balanced control groups (in total, 60 individuals) matched for gender. Two control groups had the same canine dental class as the treated group at T1, were in the inter-transitional period, and either had or lacked a lateral cross-bite. The last control group was comprised of adolescents in permanent dentition with a dental class I. The statistical analysis was performed by means of repeated-measures ANOVA for paired data and one-way ANOVA, the Kruskal-Wallis test, and the Mann-Whitney test for independent measures (α-level p < 0.05).
At the end of follow-up (inter-transitional period of dentition), the dental arch dimensions of treated patients were similar to those of adolescents with a dental class I and significantly wider than those of patients with a lateral cross-bite. Also, the anterior irregularity index was lower among patients who had undergone expansion treatments than in all untreated study participants.
The Haas expander anchored to the deciduous teeth is effective in increasing the dental arch width in patients with a lateral cross-bite. The dimensions of the dental arch were modified earlier toward the values of the permanent dentition.
The Haas appliance  is a tooth-/tissue-borne device, anchored to the first molars and premolars by bands and to the palatal vault by an acrylic body. Some authors [8–11] have demonstrated the effectiveness of a modified Haas device, anchored onto the deciduous teeth (canines and second deciduous molars), in producing expansion of the transverse diameters of the upper arch. Moreover, there appears to be less relapse in the anterior area if the expansion is carried out in the first period of transition, that is, before the permanent lateral incisor will have fully erupted, and in the presence of a lateral cross-bite .
The purpose of the present study was to investigate the clinical relevance of changes in dental arch dimensions and irregularity produced by a Haas appliance anchored onto the deciduous dentition and to compare young treated patients with homogeneous untreated individuals.
The study group was comprised of 20 Caucasian children (13 females and 7 males) in the first period of transition (mean age, 7 years and 1 month; SD, 11 months) with a mono- or bilateral cross-bite. Fifteen of the 20 patients had a canine class II.
The study group was selected retrospectively and sequentially in the clinical archives of two orthodontists who followed the same treatment protocol.

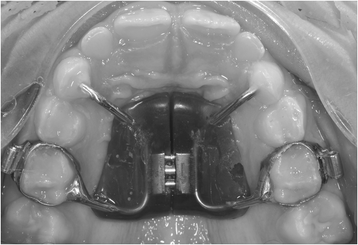

The Haas appliance was anchored to the second deciduous molars and deciduous canines (Fig. 1) and was activated once or twice per day; each activation was 0.2 mm, with a maximum allowable total expansion of 10 mm.
The patients were monitored weekly, and the expansion was terminated when the cross-bite was corrected (mean, 20 days) . The appliance was kept in situ as retention for 12 months (SD, 4 months), after the screw was fixed.
For each patient, the dental casts before expansion (T1; mean age, 7 years and 1 month; SD, 11 months), after the appliance was removed (T2; mean age, 8 years and 1 month; SD, 10 months), and at 21 months (SD, 9 months) out of retention, during the inter-transitional period of the dentition (T3; mean age, 9 years and 10 months; SD, 1 year and 4 months), were collected.

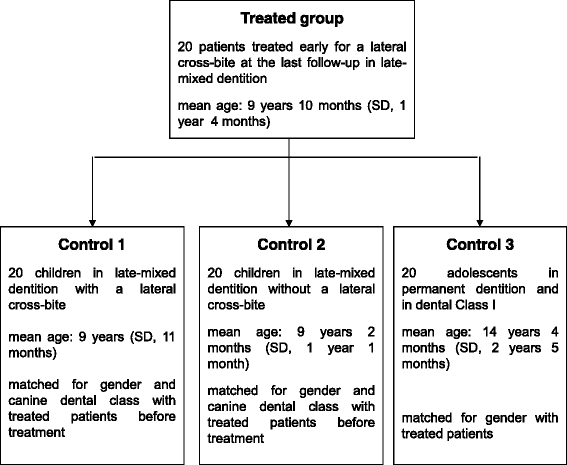

Three control groups were selected from among the patients sequentially checked during either the orthodontic consult or the periodic check-up for caries. For two groups, the inclusion criteria were the same canine dental class and the male-to-female ratio as the study group. The dental age coincided with the inter-transitional period . Patients in one of the two groups had a lateral cross-bite (mean age, 9 years; SD, 11 months), and those in the other were without a lateral cross-bite (mean age, 9 years and 2 months; SD, 1 year and 1 month). The last control group, adolescents in permanent dentition (mean age, 14 years and 4 months; SD, 2 years and 5 months), was in normal occlusion, presented the same male-to-female ratio as the study group, and had a full natural dental arch up to the first or second molars. Impressions were taken for each patient. The case-control study design diagram is shown in Fig. 2.
The scanned images of the dental casts of all treated and non-treated individuals were measured by a computerized method described previously .
The mesial and distal points and the tips of the cusps of each tooth and the inter-incisive point were digitally identified. If the central incisors had not erupted, the landmark of the inter-incisive point was marked with respect to the insertion of the frenulum. The measurements for each dental cast were as follows (Fig. 3):
inter-canine width (between cusp tips of the left and right canines),
inter-canine arch (elliptical arch between cusp tips of the left and right canines),
inter-molar width (between mesio-buccal cusps of the left and right first molars),
inter-molar arch depth (distance between the inter-incisive point and inter-molar width), and
the Little irregularity index  applied to the upper arch.
The normal distribution of variables was tested with a graphical visualization and the Shapiro-Wilk test. The data from the treated patients were analyzed by comparison of the values measured at T1, T2, and T3 with the repeated-measures ANOVA and the Tukey test (α level, 0.05). The null hypothesis stated that there was no difference in the dimensions of the dental arch before and after treatment.
The patients undergoing expansion were matched with the members of each control group with respect to gender for adolescents in normal occlusion and on the basis of gender and canine dental class for those in malocclusion (Fig. 2). The comparison of the measures correlated to the deciduous canines was performed only among the groups in the inter-transitional period.
The applied statistics were the one-way ANOVA and the Bonferroni test for normally distributed data and the Kruskal-Wallis equality-of-populations rank test and the Mann-Whitney test for not normally distributed variables. The null hypothesis was the equality in the dimensions of the dental arches of the treated and untreated individuals, with a significance level of p < 0.05.
The reliability of the operator in identifying the points on the scanned images of dental casts was calculated by the intraclass correlation coefficient (ICC). The same operator repeated the identification of landmarks of 20 patients 1 week after the first examination. The outcome was non-significant (ICC, 99.95 %), and therefore, the reliability was confirmed.
All data were statistically analyzed with STATA12 (StataCorp LP, College Station, TX, USA).
The statistical analysis of the variations in the study group showed, at T3, a significant increase (p < 0.001) in the inter-canine width (mean, 4.2 mm; SD, 2.0) and arch (mean, 6.2 mm; SD, 3.8), in the inter-molar width (mean, 4.7 mm; SD, 2.0), and in the inter-molar depth (mean, 0.8 mm; SD, 1.1). The relapse from T2 to T3 was significant (p < 0.001) in the inter-canine width (mean, −2.2 mm; SD, 2.0) and arch (mean, −4.1 mm; SD, 3.6) (Tables 1 and 2 ).
Study group vs control groups
The inter-canine width of the patients who had undergone expansion, at T3 (mean, 32.2 mm; SD, 2.0), was significantly higher than the value for children in the inter-transitional period with a lateral cross-bite (mean, 30.3 mm; SD, 3.1; p = 0.042) (Table 3 ).
The inter-molar width of the treated group (mean, 49.6 mm; SD, 2.3) was significantly higher than that of children with a lateral cross-bite (mean, 44.5 mm; SD, 2.4; p < 0.001) but was not higher than that of children without a lateral cross-bite (mean, 47.9 mm; SD, 2.9; p = 0.264). There was no difference between adolescents with a normal occlusion (mean, 50.6 mm; SD, 2.8) and treated patients (p = 0.938). Inter-molar width in adolescents was wider than that in children with (p < 0.001) and without a lateral cross-bite (p = 0.005) (Table 3).
The value of the inter-molar depth was significantly lower in the treated group (mean, 29.8 mm; SD, 1.7) than in the children with (mean, 31.8 mm; SD, 2.2; p = 0.006) and without a lateral cross-bite (mean, 32.1 mm; SD, 2.0; p = 0.001). In the same manner, the difference was significant between adolescents with a normal occlusion (mean, 29.0 mm; SD, 1.6) and children with (p < 0.001) and without a lateral cross-bite (p < 0.001). There was no difference between the adolescents with a normal occlusion and the treated patients (Table 3).
Anterior irregularity index
The irregularity index was significantly higher in untreated children in malocclusion, whether with (median, 3.2 mm; interquartile range, 2.9; p = 0.0094) or without (median, 4.0 mm; interquartile range, 4.0; p = 0.0080) a lateral cross-bite, compared with that of the treated group (median, 2.4 mm; interquartile range, 1.4) (Table 3).
This research confirms the efficacy of the Haas expander anchored to the deciduous teeth in modifying the dental arch width in a group of patients with a lateral cross-bite, treated in the first period of transition. The dimension of the inter-molar width maintained a stable measure not different from that of older individuals during adolescence and in normocclusion.
In previous studies, many authors evaluated the timing of rapid maxillary expansion during growth. Sari et al.  found that the increase in the inter-molar and inter-canine widths was equally significant in the mixed and the permanent dentition. In contrast, Bacetti et al.  found that the modification in the maxillary inter-molar width was more pronounced in the patients who underwent expansion before the pubertal peak.
In the present study, the treated group was retrospectively selected following the timing for expansion reported in the paper by Mutinelli et al.  and corresponding to the first period of transition. The comparison at the final follow-up with three control groups allowed for evaluation of the change in treated patients with respect to that in untreated individuals. One limit of this analysis is the evaluation of the inter-canine width. The last available record for the treated patients was the dental cast in mixed dentition with the deciduous canines. Therefore, it was not possible to perform any comparison of inter-canine width between treated children in late-mixed dentition and adolescents in permanent dentition and in dental class I. Moreover, there was no follow-up of the control groups during the growth period; three groups were analyzed at two different dental ages. However, the matching of patients controlled the effects of the two well-known confounding variables, gender  and dental class II . In addition, canine class II [26, 27] and lateral cross-bite  do not self-correct during dental arch growth, which is completed with the eruption of permanent canines [12, 24, 28, 29]. Therefore, it could be hypothesized that the control groups well represented the dental arch dimension of children, homologous to the treated group, at the late-mixed dentition with or without a lateral cross-bite but not treated with a rapid maxillary expansion. Further, deciding not to treat a patient with a lateral cross-bite and to follow that individual as a control is not feasible for ethical reasons. Therefore, a randomized controlled trial is difficult to implement.
The expander anchored to the deciduous teeth had, as a transverse effect, a significant increase at T3 in inter-canine width in 4.2 mm and inter-canine arch in 6.2 mm. The inter-molar diameter maintained 4.6 mm of the initial expansion (96 %) at 21 months post-retention (T3). Furthermore, the final value was no different from the values of the adolescent control group in normal occlusion. No statistically significant variation in inter-molar arch depths was recorded.
Spillane and McNamara  demonstrated, on average, 5 mm of residual expansion in the inter-molar width 2.4 years after expansion. Lima et al.  reported 4.5 mm (81.1 % of the initial expansion) 4 years after the end of activation. In an equal period of observation, this amounted to 84 % (3.7 mm) in the findings of Wong et al. , but these authors followed the SME and not the RME protocol of activation. The final dimension was no different from that of the control group with normal growth. At least 1 year out of retention, the residual expansion was 3.8 mm (79 %) for Mutinelli et al.  and 3.7 mm (90.2 %) for Cozzani et al. .
Schiffman and Tuncay  found a mean loss of 40 % of expansion in the inter-molar width within 5 years after the end of treatment. The net increase was between 3 and 4 mm in the long term, similar to the amount of normal growth in the period of time between the stages of the late-mixed and the permanent dentition. The authors did not consider that amount of increase a success, as Turpin  discussed in his editorial, if the aim of the treatment was to achieve a larger increase. Also, in this study, in which the global effect of the RME on the dental arch was analyzed, it can be concluded that the patients in the inter-transitional period showed sagittal and transverse dimensions no wider than those of adolescents in canine dental class I. The inter-molar arch depths were not influenced directly by the expansion, but at T3, the values were significantly lower than those in individuals at the same dental age. Normally, the upper arch modifies until the full eruption of the permanent dentition [12, 24] and has a tendency to become wider and shorter [12, 24, 35]. Further, expansion improved the transverse deficiency connected to the presence of a canine class II [27, 35]. Another important outcome was the value of the anterior irregularity index. In treated patients, it was significantly lower than in untreated individuals in malocclusion at the same dental age. Therefore, the choice to treat in the first transitional period and not later can have the goal of creating conditions conducive for development of the upper dental arch toward the dimensions of a patient in normal occlusion and not toward wider dimensions. Moreover, increasing the inter-canine arch length before the end of eruption of the permanent incisors, as reported by other authors [10, 32], can be a treatment option in middle and non-severe crowding, because the mean available space at T3 was 6.2 mm. A better alignment of the anterior teeth, a correct arrangement of the transseptal fibers, and a consequent reduction of risk in severe rotation  can be hypothesized. Similarly, this might confirm the results reported by Canuto et al.  that the RME applied later in the permanent dentition did not influence long-term maxillary anterior alignment stability.
Further long-term studies based on a bigger sample size, more representative of the orthodontic population, are necessary to confirm these results.
Rapid maxillary expansion performed in the first period of transition is effective in the treatment of patients with a lateral cross-bite. The dental arch increases in dimensions earlier toward the values of the permanent dentition stage, in comparison with dimensions in homogeneous untreated individuals. As a result, the increase in arch length can improve the alignment of the upper anterior teeth in patients with low or moderate crowding.
Therefore, early treatment with a Haas expander anchored to the primary dentition could be a satisfactory procedure for lateral cross-bite resolution and for anterior crowding improvement, due to simplicity of appliance design, ease of treatment management, and low risk of side effects.
Bishara SE, Staley RN. Maxillary expansion: clinical implication. Am J Orthod Dentofacial Orthop. 1987;91:3–14.
da Silva Filho OG, Montes LA, Torelly LF. Rapid maxillary expansion in the deciduous and mixed dentition evaluated through posteroanterior cephalometric analysis. Am J Orthod Dentofacial Orthop. 1995;107:268–75.
Lione R, Franchi L, Cozza P. Does rapid maxillary expansion induce adverse effects in growing subjects? Angle Orthod. 2013;83:172–82.
Perillo L, De Rosa A, Iaselli F, d’Apuzzo F, Grassia V, Cappabianca S. Comparison between rapid and mixed maxillary expansion through an assessment of dento-skeletal effects on posteroanterior cephalometry. Prog Orthod. 2014;15:46.
Melsen B. Palatal growth studied on human autopsy material. A histologic microradiographic study. Am J Orthod. 1975;68:42–54.
Thilander B, Wahlund S, Lennartsson B. The effect of early interceptive treatment in children with posterior cross-bite. Eur J Orthod. 1984;6:25–34.
Haas AJ. Palatal expansion: just the beginning of dentofacial orthopaedics. Am J Orthod. 1970;57:219–55.
Cozzani M, Rosa M, Cozzani P, Siciliani G. Deciduous dentition-anchored rapid maxillary expansion in crossbite and non-crossbite mixed dentition patients: reaction of the first permanent molar. Prog Orthod. 2003;4:15–22.
Cozzani M, Guiducci A, Mirenghi S, Mutinelli S, Siciliani G. Arch width changes with a rapid maxillary expansion appliance anchored to the primary teeth. Angle Orthod. 2007;77:296–302.
Mutinelli S, Cozzani M, Manfredi M, Bee M, Siciliani G. Dental arch changes following rapid maxillary expansion. Eur J Orthod. 2008;30:469–76.
Mutinelli S, Cozzani M. Rapid maxillary expansion in early-mixed dentition: effectiveness in increasing arch dimension with anchorage to deciduous teeth. Eur J Ped Dent. 2015;16:115–22.
van der Linden FP, Duterloo HS. Development of the human dentition: an atlas. Hagerstown, MD, USA: Harper & Row; 1976.
Vardimon AD, Graber TM, Pitaru S. Repair process of external root resorption subsequent to palatal expansion treatment. Am J Orthod Dentofacial Orthop. 1993;103:120–30.
Baysal A, Karadede I, Hekimoglu S, Ucar F, Ozer T, Veli I, et al. Evaluation of root resorption following rapid maxillary expansion using cone-beam computed tomography. Angle Orthod. 2012;82:488–94.
Chugh T, Ganeshkar SV, Revankar AV, Jain AK. Quantitative assessment of interradicular bone density in the maxilla and mandible: implications in clinical orthodontics. Prog Orthod. 2013;14:38.
Pangrazio-Kulbersh V, Jezdimir B, de Deus HM, Kulbersh R, Wine P, Kaczynski R. CBCT assessment of alveolar buccal bone level after RME. Angle Orthod. 2013;83:110–6.
Brunetto M, Andriani Jda S, Ribeiro GL, Locks A, Correa M, Correa LR. Three-dimensional assessment of buccal alveolar bone after rapid and slow maxillary expansion: a clinical trial study. Am J Orthod Dentofacial Orthop. 2013;143:633–44.
Vanarsdall RL, Secchi AG. Periodontal-orthodontic interrelationships current principle and techniques. In: Graber TM, Vanarsdall RL, Vig KWL, editors. Orthodontics. Philadelphia: Elsevier Mosby; 2012. p. 810–3.
Shungin D, Olsson AI, Persson M. Orthodontic treatment-related white spot lesions: a 14-year prospective quantitative follow-up, including bonding material assessment. Am J Orthod Dentofacial Orthop. 2010;138:136.e1–e8.
Mutinelli S, Cozzani M, Manfredi M, Siciliani G. Dental arch analysis system. Progr Orthod. 2004;5:200–8.
Little RM. The irregularity index: a quantitative score of mandibular anterior alignment. Am J Orthod. 1975;68:554–63.
Sari Z, Uysal T, Usumez S, Basciftci FA. Rapid maxillary expansion. Is it better in the mixed or in the permanent dentition? Angle Orthod. 2003;73:654–61.
Bacetti T, Franchi L, Cameron CG, McNamara JA. Treatment timing for rapid maxillary expansion. Angle Orthod. 2001;71:343–50.
Thilander B. Dentoalveolar development in subjects with normal occlusion. A longitudinal study between the ages of 5 and 39 years. Eur J Orthod. 2009;31:109–20.
Bishara SE, Bayati P, Jakobsen JR. Longitudinal comparisons of dental arch changes in normal and untreated class II, division 1 subjects and their clinical implications. Am J Orthod Dentofacial Orthop. 1996;110:483–9.
Moyers RE, van der Linden FP, Riolo ML, McNamara JA. Standards of human occlusal development. Monograph No. 5, Craniofacial Growth Series. Ann Arbor, MI, USA: University of Michigan, Center for Human Growth and Development; 1976.
Guest SS, McNamara Jr JA, Baccetti T, Franchi L. Improving Class II malocclusion as a side-effect of rapid maxillary expansion: a prospective clinical study. Am J Orthod Dentofacial Orthop. 2010;138:582–91.
Sillman JH. Dimensional changes of the dental arches: longitudinal study from birth to 25 years. Am J Orthod. 1964;50:824–42.
Bishara SE, Jakobsen JR, Treder J, Nowak A. Arch width changes from 6 weeks to 45 years of age. Am J Orthod Dentofacial Orthop. 1997;111:401–9.
Spillane LM, McNamara JA. Maxillary adaptation to expansion in the mixed dentition. Semin Orthod. 1995;1:176–87.
Lima AL, Lima Filho RMA, Bolognese AM. Long-term clinical outcome of rapid maxillary expansion as the only treatment performed in Class I malocclusion. Angle Orthod. 2005;75:416–20.
Wong CA, Sinclair PM, Keim RG, Kennedy DB. Arch dimension changes from successful slow maxillary expansion of unilateral posterior cross-bite. Angle Orthod. 2011;81:616–23.
Schiffman PH, Tuncay OC. Maxillary expansion: a meta analysis. Clin Orthod Res. 2001;4:86–96.
Turpin DL. Dealing with posterior crossbite in young patients. Am J Orthod Dentofacial Orthop. 2004;126:531–2.
Moorrees CFA, Grøn A-M, Lebret LML, Yen PKJ, Fröhlich FJ. Growth studies of the dentition: a review. Am J Orthod. 1969;55:600–16.
Kusters ST, Kuijpers-Jagtman AM, Maltha JC. An experimental study in dogs of transseptal fiber arrangement between teeth which have emerged in rotated or non-rotated positions. J Dent Res. 1991;70:192–7.
Canuto LF, de Freitas MR, Janson G, de Freitas KMS, Martins PP. Influence of rapid palatal expansion on maxillary incisor alignment stability. Am J Dentofacial Orthop. 2010;137:164.e1–e6.
The authors declare that they have no competing interests.
SM participated in the design of the study, carried out the case selection and data acquisition, performed the statistical analysis, and helped to draft the manuscript. MM participated in dental cast digital analysis, in data acquisition and in the manuscript correction. AG treated the patients and participated in the design of the study. GD participated in the design of the study and in the manuscript correction. MC treated the patients, participated in the design of the study and in the manuscript correction. All authors read and approved the final manuscript.
