New aesthetic in-house 3D-printed brackets: proof of concept and fundamental mechanical properties

Abstract

Objectives

Three-dimensional (3D) printing technology is an emerging manufacturing process for many orthodontic appliances, and the aim of this study was to evaluate the mechanical properties of resin-based materials as alternatives for the in-house preparation of orthodontic brackets.

Material and Methods

Two types of 3D printed resins used for temporary (T) and permanent (P) crown fabrication were included in this study. Ten blocks from each resin were manufactured by a 3D printer and, after embedding them in acrylic resin, the samples were subjected to metallographic grinding and polishing, followed by instrumented indentation testing (IIT). Martens hardness (HM), indentation modulus (EIT), and elastic index (ηIT) were determined with a Vickers indenter recording force-indentation depth curves from each specimen. After calculating descriptive statistics, differences between material types were investigated with Wilcoxon rank sum test accounting for clustering of measurements within specimens at alpha = 5%.

Results

No statistically significant differences in the mechanical properties of the two tested materials were seen: HM: median 279 N/mm2 (interquartile range [IQR] 275–287 N/mm2) for T and median 279 N/mm2 (IQR 270–285 N/mm2) for P (P value = 0.63); EIT: median 5548 MPa (IQR 5425–5834 MPa) for T and median 5644 (IQR 5420–5850 MPa) for P (P value = 0.84); ηIT: median 47.1% (46.0–47.7%) for T and median 46.0% (IQR 45.4–47.8%) for P (P value = 0.24).

Conclusions

Under the limitations of this study, it may be concluded that the mechanical properties of the two 3D printed resins tested are equal, and thus, no differences in their clinical performance are expected.

Introduction

Aesthetic brackets present an alternative to the classic metallic fixed appliances, which is highly desirable among adults and even some adolescent patients. However, their optical superiority over the metallic brackets does not necessarily directly translate to their mechanical properties as well. Ceramic brackets, for instance, have increased brittleness that can result to wing fractures [1, 2], impacts of the archwire surface on their surface [3], as well as wear of antagonist teeth [4]. Furthermore, their inability to plastically deform is associated with difficulties during the debonding process and with increased risk of damaging tooth enamel [5]. On the other hand, plastic brackets are soft and compliant, undergo intra-oral plasticization, and offer minimal resistance to deformation [6,7,8]. As a result, these lead to reduced material longevity, impaired tooth movement accuracy, and troublesome torque implementation [7, 9, 10], which result in a questionable efficacy of the orthodontic therapy. Although controversial, both types seem to impede sliding mechanics due to friction enhancement [11,12,13]. Taking into account these findings, it becomes clear that material selection is of paramount importance for the clinical performance of aesthetic brackets.

Apart from the raw material per se, the manufacturing method can also influence considerably the material properties, since it can lead to the presence of material imperfections or defects, generation of stress concentration areas, or partial polymerization—all of which may have detrimental consequences on the end product’s strength, modulus of elasticity, and hardness. Additive technology in particular has become a highly popular solution for the construction of orthodontic appliances as it reduces costs, increases efficiency, and offers many customization possibilities [14, 15]. The technique is based on 3D models stored in a computer and utilizes a printer for fabricating the appliance in an incremental fashion layer by layer. Some first attempts to produce ceramic brackets [16] or resin-based ones have been reported [14, 17], but in general the selection of an appropriate new material for printing aesthetic brackets that bypass the inherent problems of commercially available ones still remains a challenge. Figure 1 demonstrates a pair prototype bracket manufactured from resin by 3D-printed technology.

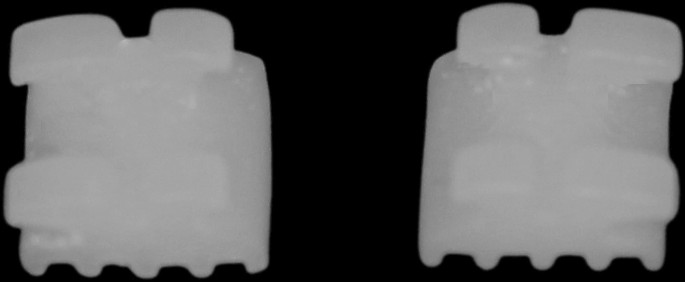

Fig. 1
figure 1

Prototype resin bracket manufactured by 3D printing technology

However, to the best of our knowledge the mechanical properties of the resin-based materials that can be used by 3D printing technology for the production of orthodontic brackets are still unknown, and thus, the aim of this study is to investigate these properties of two available resin based materials for this purpose. The null hypothesis was that there is no significant difference between the properties of these two materials.

Materials and methods

Two types of resins used for the 3D printing of temporary (T) (temporary CB resin, Formlabs, Somerville, MA, USA) or permanent (P) (permanent crown resin, Formlabs, Somerville, MA, USA) crown fabrication comprised our sample. Ten blocks with dimensions 10 mm × 10 mm × 1.5 mm from each type were designed using the computer-aided design software Meshmixer (Autodesk, San Rafael, California, USA). The blocks were exported from the software and virtually positioned on the 3D printer’s (Formlabs 3B, Somerville, Massachusetts, USA) platform to be manufactured by it. Printing time was approximately 20 min for both samples. After printing, the samples were immersed and washed in the Formwash machine (Formlabs, Somerville, MA) using isopropyl alcohol for 15 min. The samples were then cured in the Cure M curing unit (Graphy, Seoul, Korea) for 20 min on each side.

The specimens were embedded in acrylic resin (Verso Cit-2, Struers, Ballerup, Denmark), ground up to 4000 grit-size SiC abrasive grinding papers under water cooling, polished with a water-based diamond suspension (NapR1 DiaPro, Struers, Ballerup, Denmark) of 1 µm particle size in a grinding/polishing machine (Dap-V, Struers, Ballerup, Denmark), and subjected to instrumented indentation testing (IIT). Martens hardness (HM), indentation modulus (EIT), and elastic index (ηIT) were assessed. Testing was conducted in a universal hardness testing machine (ZHU0.2/Z2.5, Zwick Roell, Ulm, Germany) with a Vickers indenter at ambient temperature. The HM, EIT, and ηIT were acquired from force–indentation depth curves applying a maximum load of 4.9 N for a 2 s contact time. Six measurements from each block were taken into consideration to determine the specimen’s mechanical properties, which were calculated according to formulas provided by the international standard ISO14577-1 [18].

After checking for normality through visual inspection and formally with the Shapiro–Wilk test, descriptive statistics were calculated including medians and interquartile ranges (IQR). Differences between T and P crown materials were checked through Wilcoxon rank sum test accounting for clustering of measurements within each specimen at alpha = 5%. All analyses were run in R Software version 4.0.3 (R Foundation for Statistical Computing, Vienna, Austria) with an open dataset [19].

Results

Figure 2 shows a selection of force-indentation depth curves from both groups. All curves are similar in shape and position without any obvious differences. The results of all mechanical properties including their statistical analysis are presented in Table 1. No statistically significant differences between temporary and permanent resins were found for HM (medians of 279 and 279 N/mm2, respectively; P = 0.63), EIT (medians of 5548 and 5644 MPa, respectively; P = 0.84), or ηIT (medians of 47.1 and 46.0%, respectively; P = 0.24).

Fig. 2
figure 2

Representative force-indentation depth curves from both groups tested

Table 1 Results of the instrumented indentation testing

Discussion

Since no significant differences were observed between groups, the null hypothesis cannot be rejected, and therefore, the scenario of the two materials having similar mechanical properties is compatible with the data. The materials under investigation underwent IIT testing, which provided crucial information about fundamental mechanical properties such as their hardness, modulus of elasticity, and brittleness (elastic index) [18]. The method itself is highly versatile as there is no need for rectangular or cylindrical specimens and circumvents the classic measurement of residual indentation and the related limitations, providing fully automated and highly reliable results [20].

The 3D-printed resins showed mechanical characteristics substantially superior than the commercially available plastic brackets. The theoretical Vickers Hardness was also calculated for the tested material (35 HV) just for comparison purposes with previously published data and found almost 2 times higher compared to HV reported for plastic brackets (19.6–16.9 HV) [21] In particular, hardness which is defined as the resistance to indentation and concomitantly is a measure of wear resistance was found to be 270 N/mm2 which approaches the hardness of stainless steel bracket wings (360 N/mm2) [22]. However, as with the case of stainless steel brackets a concern may arise when the hardness of archwires is considered; this may range from 1500 to 2600 MH, depending on the alloy used with the nickel-titanium alloys being toward the lower side and the stainless steel ones being on the high side [22, 23]. As a rule, a mismatch in hardness is not desirable since it promotes wear across the path of the archwire into the slot. The harder material will leave an imprint in the softer and in most cases that is the stainless steel or nickel-titanium wire leaving an imprint in the plastic brackets. The opposite is happening on the other side in ceramic brackets. The clinical significance of this finding about hardness may pertain to the fact that low hardness wing may impede the movement of bracket along the buccal wire segment in case of sliding mechanics or complicate the transfer of torque from an activated archwire to the bracket, as well as may preclude full engagement of the wire to the slot wall and possible plastic deformation of the wing [24]. An increased hardness is necessary to facilitate surface integrity and preclude binding of the wire onto the bracket slot walls. This problem had been encountered with conventional plastic brackets as well as metal injection molding (MIM) metallic brackets. The latter are cast appliances, and as a result, the traditional concept of low hardness low modulus bracket base to facilitate uneventful debonding and high hardness high modulus wings to withstand the forces and moments developed during mechanotherapy could not be applied [25].

As far as modulus of elasticity is concerned (the higher the modulus, the higher the stiffness of a structure), the tested resinous materials (5.5–5.6 GPa; Table 1) demonstrate much lower modulus of elasticity compared to alumina brackets (138–141 GPa) [26] and metallic brackets made of stainless steel alloys (62–83 GPa) [22]. This property has various implications on the understanding of several phenomena encountered during clinical practice. As high moduli of elasticity imply high resistance to deformation, they are desirable for areas where no deflection is required. These include the brackets slot walls and wings, which should not be compliant to allow for efficient transmission of the loads applied by an activated archwire to the tooth. To this end, ceramic brackets show higher stiffness as a result of the arrangement of atoms and bonding inside their structure, and for this reason, they present better performance when it comes to transmission of loads, whereas plastic brackets apart from their lower stiffness, which in most cases make them unsuitable for this task, show also several other disadvantages such as potential release of bisphenol A. Even though a high modulus of elasticity is preferred for some components of the bracket, for other parts, such as the bracket base, this is an undesirable feature [24]. This is due to the difficulty in squeezing a stiff base at debonding, which necessitates the application of increased forces; this effect coupled with sensitive and / or sore teeth increases the discomfort/pain during debonding and iatrogenic trauma on tooth enamel [26, 27]. Future developments on this field could include the heavy filling of resin used for the 3D printing of brackets which would improve its modulus of elasticity.

Elastic index is indicative of a material’s brittleness [28], and the higher the elastic index the higher the brittleness, and from this standpoint a lower elastic index is desirable for orthodontic appliances. Besides, the clinical failure of ceramic alumina brackets during therapy or debonding [29, 30] has been associated with their brittle nature, which is reflected on the absence of plastic deformation and low fracture toughness [26]. The tested materials presented intermediate values of elastic index (46–47%), which are somewhere between the values of alumina (55–62%) [26] and the values of stainless steel brackets (15–22%) [26]. This means that they are less susceptible to chipping or fracture compared to alumina brackets, even though their behavior still remains inferior compared to metallic ones at this perspective.

Apart from the mechanical properties considered in the foregoing discussion, in-house, 3D-printed plastic brackets offer significant advantages with respect to appliance design and features. The deviation from the concept of a standard-sized and prescription bracket offers the opportunity to arrange these two characteristics per malocclusion variation. Therefore, the width of the bracket may be increased in cases of large rotations or inclinations to accommodate improved rotational and tip control; the torque prescription can be altered in scenarios where larger maxillary anterior torque is needed to maintain torque or regain it during retraction; and the thickness of the bracket can also be modulated to account for posterior teeth, most often maxillary second premolars which tend to be smaller in the buccolingual dimension and therefore in some extraction cases contribute to the formation of black corridors in the buccal segment after extraction [31].

Moreover, the customized 3D printing offers the ability to individually arrange and assess the prescription values which have been shown to vary extensively in manufactured bracket slots [32].

Conclusions

Under the limitations of this research, the 3D printed resins tested exhibited mechanical properties superior than contemporary plastic brackets, whereas they offer the unique feature of customized size, shape, and prescription according to specific characteristics of the malocclusion treated.

Availability of data and materials

All data generated or analyzed during this study are included in this published article or its supplements, while its dataset is openly provided through Zenodo (http://doi.org/10.5281/zenodo.5574399).

Abbreviations

3D:

Three-dimensional

EIT :

Indentation modulus

HM:

Martens hardness

IIT:

Instrumented indentation testing

IQR:

Interquartile range

P:

Permanent

T:

Temporary

ηIT :

Elastic index

References

  1. Johnson G, Walker MP, Kula K. Fracture strength of ceramic bracket tie wings subjected to tension. Angle Orthod. 2005;75(1):95–100.

    PubMed  Google Scholar

  2. Karamouzos A, Athanasiou AE, Papadopoulos MA. Clinical characteristics and properties of ceramic brackets: a comprehensive review. Am J Orthod Dentofacial Orthop. 1997;112(1):34–40.

    Article  Google Scholar

  3. Articolo LC, Kusy K, Saunders CR, Kusy RP. Influence of ceramic and stainless steel brackets on the notching of archwires during clinical treatment. Eur J Orthod. 2000;22(4):409–25.

    Article  Google Scholar

  4. Viazis AD, DeLong R, Bevis RR, Rudney JD, Pintado MR. Enamel abrasion from ceramic orthodontic brackets under an artificial oral environment. Am J Orthod Dentofacial Orthop. 1990;98(2):103–9.

    Article  Google Scholar

  5. Kitahara-Ceia FM, Mucha JN, dos Santos PAM. Assessment of enamel damage after removal of ceramic brackets. Am J Orthod Dentofacial Orthop. 2008;134(4):548–55.

    Article  Google Scholar

  6. Matsui S, Umezaki E, Komazawa D, Otsuka Y, Suda N. Evaluation of mechanical properties of esthetic brackets. J Dent Biomech. 2015;6:1758736015574401.

    Article  Google Scholar

  7. Eliades T, Gioka C, Zinelis S, Eliades G, Makou M. Plastic brackets: hardness and associated clinical implications. World J Orthod. 2004;5(1):62–6.

    PubMed  Google Scholar

  8. Tziafa C, Zinelis S, Makou M, Eliades T, Eliades G. Effect of fluoride solutions on the structure and hardness of plastic brackets. World J Orthod. 2010;11(4):398–403.

    PubMed  Google Scholar

  9. Zinelis S, Eliades T, Eliades G, Makou M, Silikas N. Comparative assessment of the roughness, hardness, and wear resistance of aesthetic bracket materials. Dent Mater. 2005;21(9):890–4.

    Article  Google Scholar

  10. Sadat-Khonsari R, Moshtaghy A, Schlegel V, Kahl-Nieke B, Moller M, Bauss O. Torque deformation characteristics of plastic brackets: a comparative study. J Orofac Orthop. 2004;65(1):26–33.

    Article  Google Scholar

  11. Bazakidou E, Nanda RS, Duncanson MG Jr, Sinha P. Evaluation of frictional resistance in esthetic brackets. Am J Orthod Dentofacial Orthop. 1997;112(2):138–44.

    Article  Google Scholar

  12. Choi SH, Kang DY, Hwang CJ. Surface roughness of three types of modern plastic bracket slot floors and frictional resistance. Angle Orthod. 2014;84(1):177–83.

    Article  Google Scholar

  13. Zufall SW, Kennedy KC, Kusy RP. Frictional characteristics of composite orthodontic archwires against stainless steel and ceramic brackets in the passive and active configurations. J Mater Sci Mater Med. 1998;9(11):611–20.

    Article  Google Scholar

  14. Krey KF, Darkazanly N, Kuhnert R, Ruge S. 3D-printed orthodontic brackets - proof of concept. Int J Comput Dent. 2016;19(4):351–62.

    PubMed  Google Scholar

  15. Eliades T, Zinelis S. Three-dimensional printing and in-house appliance fabrication: between innovation and stepping into the unknown. Am J Orthod Dentofacial Orthop. 2021;159(1):1–3.

    Article  Google Scholar

  16. Hodecker L, Bourauel C, Braumann B, Kruse T, Christ H, Scharf S. Sliding behaviour and surface quality after static air polishing of conventional and modern bracket materials: in vitro analysis. J Orofac Orthop 2021. [Online ahead of print.]

  17. Haynie AS, English JD, Paravina RD, Moon A, Hanigan J, Abu Al Tamn MA, et al. Colour stability of 3D-printed resin orthodontic brackets. J Orthod. 2021;48(3):241–9.

    Article  Google Scholar

  18. ISO14577-1. Metallic materials - Instrumented indentation test for hardness and materials parameters: International Organization for Standardization, Geneva 2002.

  19. Papageorgiou SN, Polychronis G, Panayi N, Zinelis S, Eliades T. New aesthetic in-house 3D-printed brackets: proof of concept and fundamental mechanical properties [Data set]. Zenodo. https://doi.org/10.5281/zenodo.5574399.

  20. Shahdad SA, McCabe JF, Bull S, Rusby S, Wassell RW. Hardness measured with traditional Vickers and Martens hardness methods. Dent Mater. 2007;23(9):1079–85.

    Article  Google Scholar

  21. Ali O, Makou M, Papadopoulos T, Eliades G. Laboratory evaluation of modern plastic brackets. Eur J Orthod. 2012;34(5):595–602.

    Article  Google Scholar

  22. Eliades T, Zinelis S, Bourauel C, Eliades G. Manufacturing of orthodontic brackets: a review of metallurgical perspectives and applications. Rec Pat Mater Sci. 2008;1(2):135–9.

    Article  Google Scholar

  23. Kummer G, Polychronis G, Zinelis S, Eliades T. Galvanic coupling and mechanical properties of low Ni orthodontic brackets with representative types of orthodontic wires. Australas Orthod J. 2019;35(1):53–60.

    Article  Google Scholar

  24. Zinelis S, Al Jabbari YS, Gaintantzopoulou M, Eliades G, Eliades T. Mechanical properties of orthodontic wires derived by instrumented indentation testing (IIT) according to ISO 14577. Prog Orthod. 2015;16:19.

    Article  Google Scholar

  25. Zinelis S, Annousaki O, Makou M, Eliades T. Metallurgical characterization of orthodontic brackets produced by metal injection molding (MIM). Angle Orthod. 2005;75(6):1024–31.

    PubMed  Google Scholar

  26. Winchester LJ. Bond strengths of five different ceramic brackets - an in vitro study. Eur J Orthod. 1991;13(4):293–305.

    Article  Google Scholar

  27. Jeiroudi MT. Enamel fracture caused by ceramic brackets. Am J Orthod Dentofacial Orthop. 1991;99(2):97–9.

    Article  Google Scholar

  28. Menčík J. Determination of mechanical properties by instrumented indentation. Meccanica. 2007;42:19–29.

    Article  Google Scholar

  29. Gibbs SL. Clinical performance of ceramic brackets: a survey of British orthodontists’ experience. Br J Orthod. 1992;19(3):191–7.

    Article  Google Scholar

  30. Viazis AD, Chabot KA, Kucheria CS. Scanning electron-microscope (SEM) evaluation of clinical failures of single-crystal ceramic brackets. Am J Orthod Dentofacial Orthop. 1993;103(6):537–44.

    Article  Google Scholar

  31. Zachrisson B. Buccal uprighting of canines and premolars for improved smile esthetics and stability. World J Orthod. 2006;7(4):406–12.

    PubMed  Google Scholar

  32. Sytreva AM, Cotrim-Ferreira FA, Garib DG, Carvahlo PEG. Are torque values of preadjusted brackets precise? J Appl Oral Sci. 2011;19(4):313–7.

    Article  Google Scholar

Download references

Acknowledgements

None.

Funding

There was no funding obtained for this research.

Author information

Authors and Affiliations

Authors

Contributions

NP and TE designed the experience. NP, GP, SZ undertook the preparation of the specimens and SNP their measurement / statistical analyses. TE wrote the initial draft of the paper, and the rest reviewed critically the submission. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Theodore Eliades.

Ethics declarations

Ethics approval and consent to participate

Ethical approval was not required.

Consent for publication

Not applicable.

Competing interests

Dr. Panayi declares a financial interest with the company Coruo (Limoges, France) concerning the Orthodontic CAD software UBrackets, but did not participate in specimen testing or data analysis. The remaining authors declare that they have no competing interests.
