Long-term bone remodeling of maxillary anterior teeth with post-treatment alveolar bone defect in adult patients with maxillary protrusion: a prospective follow-up study
Progress in Orthodontics volume 24, Article number: 36 (2023)
Alveolar bone defects, particularly palatal bone dehiscence (PBD) and labial bone fenestration (LBF), occur frequently as a result of retraction of the maxillary anterior teeth. The study aims to explore the long-term bone remodeling of maxillary anterior teeth in adult patients with post-orthodontic treatment PBD and LBF.
Materials and methods
The study includes 24 adult patients with maxillary protrusion (8 males, 16 females) who were treated with extraction of four first premolars and had alveolar bone defects (PBD or LBF) in maxillary anterior teeth following orthodontic treatment. Cone-beam computed tomography imaging measurements were obtained before (T1), after (T2) orthodontic treatment, and after at least 1-year removable thermoplastic retainer retention (T3). The maxillary anterior teeth with PBD or LBF at T2 were divided into the PBD or LBF groups, respectively. The labial and palatal alveolar bone height (ABH), alveolar bone thickness (ABT), and movement of maxillary anterior teeth were measured during retraction (T2–T1) and retention (T3–T2) periods.
The incidence of PBD and LBF in maxillary anterior teeth significantly increased after orthodontic treatment and decreased during the retention period. In the PBD group, the palatal ABH of all maxillary anterior teeth significantly increased from T1 to T2 but decreased from T2 to T3. The ABT of the maxillary central incisor and canine significantly increased on the palatal side and decreased on the labial side during the retention period. In the LBF group, the labial ABT of the maxillary central incisor at the apical level showed a significant decrease from T1 to T2, followed by an increase from T2 to T3. In both groups, the maxillary central incisor showed significant labial movement, with a relative intrusion during the retention period.
For adult patients with maxillary protrusion, the alveolar bone defect of maxillary anterior teeth caused by orthodontic retraction significantly improved during the retention period, indicating good long-term bone remodeling. Our findings suggest that a combination of spontaneous reorientation of maxillary anterior teeth and bone remodeling contributed to alveolar bone covering in these patients.
Maxillary protrusion is common in patients with Class I and Class II malocclusion, and particularly in the Asian population [1, 2]. The extraction of maxillary premolars and subsequent retraction of maxillary anterior teeth are commonly performed to achieve an esthetic profile and better occlusion in these patients. Recently, the widespread use of mini-implants has remarkably increased the extent of retraction of the maxillary anterior teeth, which poses significant risk of alveolar bone defects in the maxillary anterior teeth following orthodontic treatment . The alveolar bone in maxillary anterior teeth is always thin in maxillary protrusion patients [4, 5]. Evangelista et al.  reported that the incidence of alveolar bone defects (dehiscence and fenestration) in non-orthodontic patients with Class I and Class II Division I malocclusion was 36.51% and 51.09%, respectively. Hence, these patients have a high risk of alveolar bone defects in maxillary anterior teeth during orthodontic treatment.
During maxillary anterior teeth retraction, the tooth movement commonly exceeds the bone apposition, in which the ratio of bone remodeling to anterior teeth retraction is less than 1:1, particularly on the palatal side. Once the degree of retraction becomes excessive, such that it exceeds the palatal alveolar bone boundary, palatal bone dehiscence (PBD) in the cervical region could occur . In our previous systematic review, we found that the palatal alveolar bone height and thickness both significantly decreased during maxillary anterior teeth retraction . Other than PBD, if the torque control of maxillary anterior teeth is insufficient during retraction, the teeth tend to incline lingually; thus, labial bone fenestration (LBF) in the apical region could be present. With the common use of cone-beam computed tomography in orthodontic fields, the three-dimensional morphological change in the root and alveolar bone during anterior teeth retraction can be easily detected . Several CBCT studies have reported the frequent occurrence of PBD and LBF in maxillary anterior teeth during retraction [7, 9,10,11,12]. Hence, the periodontal safety of retraction treatment should be an essential concern for both orthodontists and periodontists.
The issue of bone remodeling after tooth movement has been extensively discussed. Various techniques, including orthodontic extrusion and orthodontic implant site switching, have been proposed to preserve alveolar bone volume and facilitate subsequent prosthodontic or implant treatment . However, questions still remain regarding whether bone remodeling can take place during the retention phase, especially when alveolar bone defects occur in the maxillary anterior teeth after orthodontic retraction. At present, there is limited research investigating the long-term changes in alveolar bone in maxillary anterior teeth, and the question of alveolar bone remodeling during the retention phase remains [14,15,16]. In a study by Remmelink et al. , the cortical plate after orthodontic treatment did not recover when the root penetrated the palatal cortical plate. By contrast, a CBCT study found that loss of palatal alveolar bone in adolescent patients, who tend to have greater bone remodeling capacity, could recover during the retention phase . For adult patients with limited bone remodeling capacity, long-term bone remodeling of maxillary anterior teeth during the retention phase has not been investigated. Hence, we explored the long-term bone remodeling capability of maxillary anterior teeth in adult orthodontic patients with post-treatment alveolar bone defects.
Materials and methods
This study was approved by the Peking University School and Hospital of Stomatology Ethics Committee (PKUSSIRB-202168141). All patients provided written informed consent before participating. The sample size was calculated by Power Analysis and Sample Size software (PASS 2000, NCSS, Kaysville, UT, USA) based on a previous study that reported a palatal ABH of the maxillary central incisor of 2.43 ± 1.76 mm after orthodontic treatment and 1.23 ± 0.63 mm after 2 years of retention . Twenty-one patients were required to meet the clinical difference, given an analysis assuming 80% power at the 5% significance level (two-sided). In total, 24 adult patients from the Department of Orthodontics, Peking University School and Hospital of Stomatology, who had alveolar bone defect in maxillary anterior teeth after orthodontic treatment, were recalled after at least 1 year of retention and included in this study.
The inclusion criteria were as follows: age > 18 years, maxillary protrusion (Class I or Class II molar relationship, 2° < ANB angle < 8°, U1-NA angle > 22.8° , upper lips positioned in advance of the E-line), extraction of four first premolars, undergone maxillary anterior teeth retraction during orthodontic treatment, at least one maxillary anterior tooth diagnosed with PBD or LBF after orthodontic treatment, available CBCT scans before and after orthodontic treatment, and wearing a removable thermoplastic retainer during retention period. The exclusion criteria were as follows: missing maxillary anterior teeth, maxillary anterior teeth with root canal treatment and crown, significant reopening of the extraction site or crowding during the retention period, periodontal inflammation, systemic disease, and smoker. All included patients were treated by three experienced orthodontists (RZ Guo, YP Huang and WR Li) using pre-adjusted MBT brackets with a 0.022″ × 0.028″ slot (3 M Unitek, Monrovia, CA, USA). Sliding mechanics with 0.019″ × 0.025″ stainless steel was used to retract the maxillary anterior teeth.
Cone beam computed tomography imaging
To analyze the long-term periodontal safety of maxillary anterior teeth with post-treatment alveolar bone defect, all patients were recalled to take a CBCT scan after at least 1 year retention (T3). The pre- (T1) and post-treatment (T2) CBCT were obtained retrospectively. All CBCT scans were taken using a NewTom Scanner (Marburg, Germany) under the following conditions: axial slice thickness, 0.25 mm; field of view, 16 cm × 16 cm; and scan time, 15 s. The CBCT raw data were exported into DICOM format and imported into Dolphin 3D Imaging software (version 11.8, Dolphin Imaging and Management Solutions, Chatsworth, CA, USA) for further analysis.
All CBCT images were standardized and oriented as follows: the horizontal plane was defined as the Frankfort horizontal plane (Or-Po); the mid-sagittal plane was defined as the plane connecting the nasion, anterior nasal spine, and posterior nasal spine (Na-ANS-PNS). The maxillary region was selected for voxel-based superimposition as described previously . The CBCT images at T1 and T2 were superimposed to analyze the teeth movement and alveolar bone change before and after orthodontic treatment, and CBCT images at T2 and T3 were superimposed to analyze the teeth movement and alveolar bone change during the retention period.
Measurement of teeth movement
To analyze the maxillary anterior teeth movement, a 3D coordinate system in the superimposition model was established, as described previously . The Na-ANS-PNS plane (sagittal plane), Frankfort horizontal plane (axial plane), and the plane perpendicular to these two planes (coronal plane), were selected as the X, Y, and Z planes, respectively. The origin point (0, 0, 0) was the PNS point. The midpoint of the incisal edge, cusp tip of the canine, and the root apex of maxillary anterior teeth were manually positioned and selected as landmarks. The coordinates of each landmark were exported into Microsoft Excel 2013 (Microsoft Corp., Redmond, WA, USA) and analyzed using MathType software (ver. 5.0, Design Science, Long Beach, CA, USA). The amount of retraction and relapse of the maxillary anterior teeth, at the crown and root apex levels, were measured as the distances between landmarks at T1 and T2, and at T2 and T3, respectively.
Measurement of alveolar bone

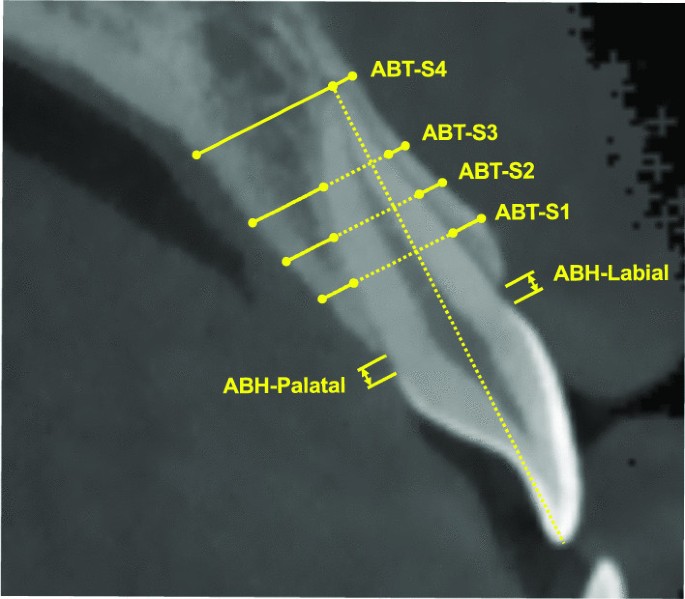

As shown in Fig. 1, the alveolar bone height (ABH) and alveolar bone thickness (ABT) were measured to detect bone defect and evaluate bone remodeling. For each maxillary anterior tooth, the long axis (the line connecting the midpoint of the incisal edge/the cusp tip and root apex) was selected as the reference line. The distance between the alveolar bone crest and cemento-enamel junction (CEJ), parallel to the long axis, was measured as ABH. ABT was measured as the distance between the cortical plate and root surface, perpendicular to the long axis, at S1 (4 mm from CEJ), S2 (6 mm from CEJ), S3 (8 mm from CEJ), and S4 (root apex) levels. According to the study by Davies et al. , dehiscence was diagnosed when the labial or palatal alveolar bone crest was at least 4 mm apical to inter-proximal bone margin. Fenestration was diagnosed as a localized defect of alveolar bone exposing the root at least 3 consecutive sections, without involving the alveolar bone margin. The incidence of PBD and LBF at T1, T2, and T3 were recorded. To further analyze the bone remodeling of maxillary anterior teeth with post-treatment alveolar bone defect, the maxillary anterior teeth with PBD and LBF at T2 were divided into the PBD and LBF groups, separately. All measurements of maxillary anterior teeth were performed at the labial and palatal sides.
All CBCT measurements were conducted by one experienced orthodontist (LW Li). To assess measurement reliability, five patients were selected at random. The CBCT measurements of these five patients were repeated at 2-week intervals. The Dahlberg formula was used to measure the method error. The Shapiro–Wilk test was performed to test the normality of measurement distributions. When measurements were normally distributed, a repeated-measures analysis of variance and post hoc least significant difference tests were used to evaluate differences among the three time points. Paired t tests were used to evaluate the teeth movement in each group from T1 to T2 and T2 to T3. If the measurement distribution was not normally distributed, the Wilcoxon signed-rank test was used. The generalized estimating equation was used to compare the difference in incidence among groups. All statistical analyses were performed using SPSS software (version 26; SPSS, Chicago, IL, USA) with a statistical significance level of 0.05.
The intra-class correlation coefficients of the CBCT measurements were all higher than 0.90, indicating good reliability. The method error ranged from 0.11 to 0.42 mm for teeth movement measurements and 0.09 to 0.28 mm for bone measurements. The patients’ descriptive statistics are shown in Table 1.
Incidence of alveolar bone defects in maxillary anterior teeth
The incidence of alveolar bone defect is shown in Table 2. Among 144 maxillary anterior teeth, there was no maxillary anterior teeth with PBD at T1. The incidence of PBD in maxillary anterior teeth at T2 was 67.36% and was significantly lower at T3 (11.11%). After orthodontic treatment, the maxillary lateral incisors showed the highest incidence of PBD (77.08%), followed by maxillary central incisors (75.00%) and maxillary canine (50.00%). As for LBF, the incidence in maxillary anterior teeth was 20.83% at T1, 24.31% at T2, and 10.42% at T3, respectively. Among the maxillary anterior teeth, the incidence of LBF was highest in the maxillary canine (37.50% at T1, 41.67% at T2, and 20.83% at T3).
Bone remodeling and tooth movement of maxillary anterior teeth in the PBD group
There were 97 maxillary anterior teeth with PBD at T2 (36 maxillary central incisors, 37 maxillary lateral incisors, and 24 maxillary canines) in the PBD group. As shown in Table 3, the palatal ABH of all maxillary anterior teeth significantly increased after orthodontic treatment and decreased after at least 1 year of retention (central incisor: 1.028 ± 0.407 mm at T1, 6.735 ± 1.729 mm at T2, 2.169 ± 0.993 mm at T3; lateral incisor: 1.216 ± 0.497 mm at T1, 8.442 ± 11.477 mm at T2, 2.555 ± 1.472 mm at T3; canine: 1.225 ± 0.464 mm at T1, 5.790 ± 1.654 mm at T2, 3.164 ± 1.477 mm at T3), indicating a recovery of bone dehiscence during the retention period (T3–T2). There were no significant differences in the change in the labial ABH of maxillary anterior teeth among the three time points. As for bone thickness, the ABT of the maxillary central incisor and canine significantly increased on the palatal side and decreased on the labial side during the retention period, while only a significant increase in palatal ABT at the S1 level was observed in maxillary lateral incisors at T3.
As shown in Table 4, after orthodontic treatment, the retractions of the maxillary central and lateral incisor were 5.120 ± 2.545 mm and 5.017 ± 1.691 at the incisal edge level, and 2.277 ± 1.845 mm and 1.797 ± 1.630 mm at the root apex level, respectively. During the retention period, the maxillary incisors showed significant labial movement with a relative intrusion. For the maxillary central incisor, the labial movement was 0.271 ± 0.466 mm at the incisal edge and 0.749 ± 0.564 mm at the root apex. Similarly, the labial movement of the maxillary lateral incisor was 0.150 ± 0.460 mm at the incisal edge and 0.528 ± 0.391 mm at the root apex. Vertically, the incisal edge was relatively intruded (maxillary central incisor: 0.457 ± 0.614 mm; maxillary lateral incisor: 0.240 ± 0.481 mm). As for the maxillary canine, the root apex was displaced mesially (0.738 ± 0.574 mm) during the retention period.
Bone remodeling and tooth movement of maxillary anterior teeth in the LBF group
There were 35 maxillary anterior teeth with LBF at T2 (5 maxillary central incisors, 10 maxillary lateral incisors, and 20 maxillary canines) in the LBF group. As shown in Table 5, the labial ABT of the maxillary central incisor at the S2 and S4 levels showed a significant decrease during the retraction period and a significant increase during the retention period (S2: 1.197 ± 0.653 mm at T1, 0.823 ± 0.660 mm at T2, 1.045 ± 0.532 mm at T3; S4: 1.125 ± 0.332 mm at T1, 0.791 ± 0.627 mm at T2, 1.164 ± 0.651 mm at T3), indicating a recovery of bone fenestration. The palatal ABT of maxillary anterior teeth remained stable during the retention period. The palatal ABH of the maxillary lateral incisor and canine significantly increased after orthodontic treatment and decreased after at least 1 year of retention. The labial ABH of all maxillary anterior teeth were stable during and after orthodontic treatment.
As shown in Table 6, after orthodontic treatment, the maxillary incisors had retracted significantly at the incisal edge level (maxillary central incisor: 6.260 ± 1.932 mm; maxillary lateral incisor: 5.580 ± 1.691 mm). The root of the maxillary incisor was less retracted (maxillary central incisor: 0.020 ± 1.674 mm; maxillary lateral incisor: 0.700 ± 1.534 mm), indicating that the maxillary incisors were lingually inclined. During the retention period, the maxillary central incisor showed significant labial movement (incisal edge: 0.740 ± 0.439 mm; root apex: 0.180 ± 0.460 mm) with relative intrusion (incisal edge: 0.400 ± 0.173 mm). Similarly, the labial movements of the maxillary lateral incisor were 0.250 ± 0.280 mm at the incisal edge level and 0.290 ± 0.303 mm at the root apex level. As for the maxillary canine, the root apex moved buccally (1.525 ± 1.655 mm) during orthodontic treatment and moved palatally (–0.215 ± 0.461 mm) during the retention period.
The boundary of orthodontic tooth retraction has been the subject of a lengthy debate. Although the consensus is to keep the teeth in the alveolar bone during orthodontic retraction, it is challenging to achieve this treatment goal, especially for patients with convex profile and narrow alveolar bone. Numerous CBCT studies have shown that alveolar bone defects (PBD or LBF) frequently occur after maxillary anterior teeth retraction [9,10,11,12]. To our knowledge, no study has examined the long-term bone remodeling of maxillary anterior teeth in adult patients with alveolar bone defects. To assess the periodontal health of such teeth, we first analyzed the three-dimensional changes in maxillary anterior teeth and the surrounding alveolar bone in adult patients during orthodontic treatment and retention.
After retraction of maxillary anterior teeth, the incidence of PBD significantly increased from 0 to 67.36%. Unlike the efficient remodeling of labial alveolar bone that follows the retraction of anterior teeth, palatal alveolar bone does not remodel well. Secondary bone apposition on the palatal side is insufficient, and the original morphology of the cortical bone may represent a boundary for maxillary anterior teeth retraction. Once the anterior teeth contact the cortical bone, bone dehiscence could occur. In a study by Ahn et al. , the loss of vertical alveolar bone of the maxillary central incisor on the palatal side was an average of 3.65 mm after retraction treatment. In our study, the vertical bone loss on the palatal side in the PBD group was 5.7 mm in the maxillary central incisor and 7.20 mm in the maxillary lateral incisor, which showed severe bone dehiscence. It should be noted that the incidence and severity of PBD in maxillary anterior teeth after retraction were high because only patients with alveolar bone defects were included. Besides, the alveolar bone change in maxillary anterior teeth during retraction is highly related to the amount and type of tooth movement [20, 21]. The tooth movement of maxillary anterior teeth retraction in the PBD group was close to bodily movement, which might increase the severity of PBD.
At present, there is no consensus on the capacity of alveolar bone remodeling during the retention period, particularly for teeth with alveolar bone defects. According to the study by Remmelink et al.  and Wainwight et al. , severe bone dehiscence, which occurs when the root penetrates the cortical plate, cannot be repaired. Surprisingly, we found that there was a layer of new cortical bone on the palatal side of maxillary anterior teeth. The palatal bone dehiscence was significantly recovered during the retention period. Moreover, the thickness of the palatal bone was also significantly increased. Our results are consistent with a case report that showed that palatal bone dehiscence of maxillary incisors in a 31-year-old woman with four premolar extractions and mini-screw anchorage was recovered 10 years after treatment . Another study reported that the height and thickness of palatal bone at the cervical level were significantly increased in adolescent patients after 18–24 months of retention . To further analyze treatment stability, we superimposed post-treatment and retention CBCT images. We found that the root of the maxillary anterior teeth labially moved, which indicates that the teeth moved into alveolar bone housing. Due to the labial movement of maxillary anterior teeth, the thickness of the labial bone significantly decreased. Our results are consistent with those of Chaison et al. , who reported that regeneration of alveolar bone is related to the torque relapse of maxillary anterior teeth during the retention period. The reorientation of maxillary anterior teeth and secondary bone apposition may both contribute to the regeneration of cortical bone during the retention period (Fig. 2). Importantly, although palatal bone was recovered, the bone height and thickness did not fully return to pre-treatment levels.
After maxillary anterior teeth retraction, the incidence of LBF (24.31%) was lower than that of PBD, and bone fenestration was detected mainly in the apical region of the labial root. Different from the approximate bodily movement in the PBD group, the type of maxillary anterior teeth retraction in the LBF group was mainly an uncontrolled tipping movement, which induced LBF in the apical region of the root. As for maxillary canines, the buccal movement of the root increased the occurrence of LBF. Hence, torque control of maxillary anterior teeth is essential during retraction. After at least 1 year of retention, the incidence of LBF had decreased significantly. A continuous bone covering occurred over the exposed root apex (Fig. 2). Our findings are consistent with those of Robert et al. , who also reported that LBF was partly repaired. CBCT superimposition revealed that the root of the maxillary canine moved palatally into alveolar bone housing during the retention period. Although the root of maxillary incisors moved labially, bone still covered the labial side. Hence, we speculate that LBF in maxillary incisors is mainly repaired by osteoblastic periodontal remodeling.
Treatment stability is an essential concern in the orthodontic field. Relapse after orthodontic treatment is a trend of returning to its initial position, which is generally inevitable and unpredictable . Quaglio et al.  analyzed the relapse of maxillary anterior crowding in extraction patients, and found that the stability of maxillary anterior alignment was 88.12%. The support of the alveolar bone plays an important role in dental relapse . A retrospective study conducted by Rothe et al.  found that the decreased cortical thickness could increase the risk of incisor relapse. In our study, we found that maxillary anterior teeth with alveolar bone defects are less stable, and their position significantly changed during the retention period in both PBD and LBF groups. Maxillary anterior teeth spontaneously reoriented, with the root moving into the bone, which partly contributed to bone recovery. It is worth mentioning that there was no significant crowding or spacing relapse in our study, due to good patient compliance with retainer wear. That is to say, the slight relapse of the root could not be prevented by a removal retainer.
Esthetics is a major motivating factor for adult patients with maxillary protrusion seeking orthodontic treatment. To address this issue, maximum maxillary anterior teeth retraction with premolar extraction is always needed. Current evidence suggests that bone remodeling capacity declines with age due to weakened stem cell function . Adult patients have limited bone remodeling capacity, and a high incidence of alveolar bone defects after orthodontic treatment has been reported . It is imperative to evaluate the long-term periodontal safety of maxillary anterior teeth after retraction. We were pleased that our adult patients showed good repair of alveolar bone defects during the retention period. Several factors might contribute to alveolar bone covering in adult patients. First, the included patients are young adults (age: 24.86 ± 4.10 years), who still have a good bone remodeling capacity. Second, unlike mandibular incisors with bone dehiscence and gingival recession, the thick palatal gingival tissue of maxillary anterior teeth might aid alveolar bone regeneration by conserving periodontal ligaments, which participate in alveolar bone remodeling. Despite the fact that bone dehiscence occurred on the palatal side of maxillary incisors, there was no gingival recession or root exposure, due to the coverage of thick palatal gingival tissue.
Our results suggest that maxillary anterior teeth with bone dehiscence and bone fenestration may develop bone covering during the retention period. However, there are several considerations that should be emphasized in the interpretation of our results. First, although CBCT is accurate and reliable for measuring alveolar bone defects, they may still be overestimated [30,31,32]. In this study, CBCT with 0.25 mm scanning voxel size was used to detect alveolar bone defects. When the bone thickness was less than 0.25 mm, these conditions could not be detected. Second, the alveolar bone defects that occurred in maxillary anterior teeth were primary palatal bone dehiscence and labial bone fenestration; labial bone dehiscence and palatal bone fenestration were not observed in this study. Hence, only the former were analyzed. Finally, although our results demonstrate that alveolar bone defects can be repaired during retention, maximum retraction may not be acceptable for all adult patients. Bone remodeling capacity varies among people. If periodontal inflammation is not controlled during the retention period, anterior teeth with less bone support are vulnerable to further damage. Hence, the amount of maxillary anterior teeth retraction should be based on the pre-treatment anatomic limit, particularly for a patient with maxillary protrusion and a thin alveolar bone. Once the alveolar bone defect occurs after orthodontic treatment, it is still essential to perform a long-term follow-up examination.
For adult patients with maxillary protrusion, the palatal bone dehiscence and labial bone fenestration of maxillary anterior teeth caused by orthodontic retraction significantly improved during the retention period, indicating good long-term bone remodeling. Our findings suggest that a combination of spontaneous reorientation of maxillary anterior teeth and bone remodeling contributed to alveolar bone covering in these patients.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Huang YP, Li WR. Correlation between objective and subjective evaluation of profile in bimaxillary protrusion patients after orthodontic treatment. Angle Orthod. 2015;85(4):690–8.
Chan EK, Soh J, Petocz P, Darendeliler MA. Esthetic evaluation of Asian-Chinese profiles from a white perspective. Am J Orthod Dentofac Orthop. 2008;133(4):532–8.
Al-Sibaie S, Hajeer MY. Assessment of changes following en-masse retraction with mini-implants anchorage compared to two-step retraction with conventional anchorage in patients with class II division 1 malocclusion: a randomized controlled trial. Eur J Orthod. 2014;36(3):275–83.
Hong SY, Shin JW, Hong C, Chan V, Baik UB, Kim YH, et al. Alveolar bone remodeling during maxillary incisor intrusion and retraction. Prog Orthod. 2019;20(1):47.
Zhou Z, Chen W, Shen M, Sun C, Li J, Chen N. Cone beam computed tomographic analyses of alveolar bone anatomy at the maxillary anterior region in Chinese adults. J Biomed Res. 2014;28(6):498–505.
Evangelista K, Vasconcelos Kde F, Bumann A, Hirsch E, Nitka M, Silva MA. Dehiscence and fenestration in patients with class I and class II division 1 malocclusion assessed with cone-beam computed tomography. Am J Orthod Dentofac Orthop. 2010;138(2):133.e1-7.
Eksriwong T, Thongudomporn U. Alveolar bone response to maxillary incisor retraction using stable skeletal structures as a reference. Angle Orthod. 2021;91(1):30–5.
Guo R, Zhang L, Hu M, Huang Y, Li W. Alveolar bone changes in maxillary and mandibular anterior teeth during orthodontic treatment: a systematic review and meta-analysis. Orthod Craniofac Res. 2021;24(2):165–79.
Ahn HW, Moon SC, Baek SH. Morphometric evaluation of changes in the alveolar bone and roots of the maxillary anterior teeth before and after en masse retraction using cone-beam computed tomography. Angle Orthod. 2013;83(2):212–21.
Guo QY, Zhang SJ, Liu H, Wang CL, Wei FL, Lv T, et al. Three-dimensional evaluation of upper anterior alveolar bone dehiscence after incisor retraction and intrusion in adult patients with bimaxillary protrusion malocclusion. J Zhejiang Univ Sci B. 2011;12(12):990–7.
Wen FJ, Chen G, Liu Y. Morphological analysis of roots and alveolar bone changes after upper anterior retraction with maximum anchorage based on cone-beam computed tomography. Beijing Da Xue Xue Bao Yi Xue Ban. 2016;48(1):702–8.
Yang CYM, Atsawasuwan P, Viana G, Tozum TF, Elshebiny T, Palomo JM, et al. Cone-beam computed tomography assessment of maxillary anterior alveolar bone remodelling in extraction and non-extraction orthodontic cases using stable extra-alveolar reference. Orthod Craniofac Res. 2023;26(2):265–76.
Borzabadi-Farahani A, Zadeh HH. Adjunctive orthodontic applications in dental implantology. J Oral Implantol. 2015;41(4):501–8.
Uesugi S, Imamura T, Kokai S, Ono T. Cone-beam computed tomography-based diagnosis and treatment simulation for a patient with a protrusive profile and a gummy smile. Korean J Orthod. 2018;48(3):189–99.
Wang J, Zhou W, Wu Y, Dai H, Zhou J. Long-term changes in the anterior alveolar bone after orthodontic treatment with premolar extraction: a retrospective study. Orthod Craniofac Res. 2022;25(2):174–82.
Remmelink HJ, van der Molen AL. Effects of anteroposterior incisor repositioning on the root and cortical plate: a follow-up study. J Clin Orthod. 1984;18(1):42–9.
Chen J, Wen J, Huang L, Zhang L, Han L, Li H. Comparisons of maxillary incisor retraction effects for patients with first premolar extractions between Damon Q and Invisalign(R): a retrospective study. Medicine. 2022;101(40):e30919.
Zhang L, Guo R, Xu B, Wang Y, Li W. Three-dimensional evaluation of maxillary tooth movement in extraction patients with three different miniscrew anchorage systems: a randomized controlled trial. Prog Orthod. 2022;23(1):46.
Davies RM, Downer MC, Hull PS, Lennon MA. Alveolar defects in human skulls. J Clin Periodontol. 1974;1(2):107–11.
Yodthong N, Charoemratrote C, Leethanakul C. Factors related to alveolar bone thickness during upper incisor retraction. Angle Orthod. 2013;83(3):394–401.
Vardimon AD, Oren E, Ben-Bassat Y. Cortical bone remodeling/tooth movement ratio during maxillary incisor retraction with tip versus torque movements. Am J Orthod Dentofac Orthop. 1998;114(5):520–9.
Wainwright WM. Faciolingual tooth movement: its influence on the root and cortical plate. Am J Orthod. 1973;64(3):278–302.
Bae SM, Kim HJ, Kyung HM. Long-term changes of the anterior palatal alveolar bone after treatment with bialveolar protrusion, evaluated with computed tomography. Am J Orthod Dentofac Orthop. 2018;153(1):108–17.
Chaison JB, Chen CS, Herring SW, Bollen AM. Bone volume, tooth volume, and incisor relapse: a 3-dimensional analysis of orthodontic stability. Am J Orthod Dentofac Orthop. 2010;138(6):778–86.
Fuhrmann R. Three-dimensional interpretation of periodontal lesions and remodeling during orthodontic treatment Part III. J Orofac Orthop. 1996;57(4):224–37.
Littlewood SJ, Kandasamy S, Huang G. Retention and relapse in clinical practice. Aust Dent J. 2017;62(Suppl 1):51–7.
Quaglio CL, de Freitas KM, de Freitas MR, Janson G, Henriques JF. Stability and relapse of maxillary anterior crowding treatment in class I and class II division 1 malocclusions. Am J Orthod Dentofac Orthop. 2011;139(6):768–74.
Rothe LE, Bollen AM, Little RM, Herring SW, Chaison JB, Chen CS, et al. Trabecular and cortical bone as risk factors for orthodontic relapse. Am J Orthod Dentofac Orthop. 2006;130(4):476–84.
Huang L, Salmon B, Yin X, Helms JA. From restoration to regeneration: periodontal aging and opportunities for therapeutic intervention. Periodontol 2000. 2016;72(1):19–29.
Redua RB, Carvalho FAR, Artese FRG. Measurement of the bone height of mandibular incisors and canines on computed tomography-limitations according to bone thickness. Orthod Craniofac Res. 2020;23(1):59–65.
Leung CC, Palomo L, Griffith R, Hans MG. Accuracy and reliability of cone-beam computed tomography for measuring alveolar bone height and detecting bony dehiscences and fenestrations. Am J Orthod Dentofac Orthop. 2010;137(4 Suppl):S109–19.
van Leeuwen BJ, Dijkstra PU, Dieters JA, Verbeek HPJ, Kuijpers-Jagtman AM, Ren Y. Effect of voxel size in cone-beam computed tomography on surface area measurements of dehiscences and fenestrations in the lower anterior buccal region. Clin Oral Investig. 2022;26(9):5663–72.
