Alendronate treatment rescues the effects of compressive loading of TMJ in osteogenesis imperfecta mice

Progress in Orthodontics volume 25, Article number: 25 (2024) Cite this article

Abstract

Background

Osteogenesis imperfecta (OI) is a genetic disorder of connective tissue caused by mutations associated with type I collagen, which results in defective extracellular matrix in temporomandibular joint (TMJ) cartilage and subchondral bone. TMJ is a fibrocartilaginous joint expressing type I collagen both in the cartilage and the subchondral bone. In the present study the effects of alendronate and altered loading of the TMJ was analyzed both in male and female OI mice.

Materials and methods

Forty-eight, 10-weeks-old male and female OI mice were divided into 3 groups: (1) Control group: unloaded group, (2) Saline + Loaded: Saline was injected for 2 weeks and then TMJ of mice was loaded for 5 days, (3) alendronate + loaded: alendronate was injected for 2 weeks and then TMJ of mice was loaded for 5 days. Mice in all the groups were euthanized 24-h after the final loading.

Results

Alendronate pretreatment led to significant increase in bone volume and tissue density. Histomorphometrically, alendronate treatment led to increase in mineralization, cartilage thickness and proteoglycan distribution. Increased mineralization paralleled decreased osteoclastic activity. Our immunohistochemistry revealed decreased expression of matrix metallopeptidase 13 and ADAM metallopeptidase with thrombospondin type 1 motif 5.

Conclusion

The findings of this research support that alendronate prevented the detrimental effects of loading on the extracellular matrix of the TMJ cartilage and subchondral bone.

Introduction

Osteogenesis imperfecta (OI), also known as brittle bone disease, is a genetic disease of connective tissue that is characterized by low bone mass, and varying degrees of bone fragility which predisposes the patient to spontaneous fracture [1,2,3,4,5]. It is a life-long disorder, distributed equally among males and females and in all ethnic groups [5]. More than 90% of OI cases are autosomal dominant, caused by mutations in the COL1A1 and COL1A2 genes which code for the α1(I) and α2(I) chains of Type I collagen, altering the protein structure or quantity [2,3,4,5].

There is no cure for OI currently and bisphosphonates are the drug commonly prescribed to the individuals with OI [6]. Bisphosphonates are potent anti-resorptive agent that inhibits the functions of osteoclast [6]. Pamidronate and alendronate (ALN) have been shown to be effective in treating different subtypes of OI, as they significantly increase bone mineral density and decrease bone turnover [7,8,9,10].

The temporomandibular joint (TMJ) is a unique diarthrodial, synovial joint formed by the articulation of the mandibular condylar cartilage (MCC), the TMJ disc, and the cartilage of the glenoid fossa [11,12]. The MCC, the TMJ disc and the cartilage of the glenoid fossa are fibrocartilaginous and predominantly consist of chondrocytes which expresses type 1 collagen [11,12,13]. Furthermore, osteoblasts in the subchondral bone of the condyle expresses type 1 collagen [11,12].

Osteogenesis imperfecta murine (oim) mice, one of the most commonly used transgenic mouse models for OI, are a phenocopy of the naturally occurring mutation causing human type III OI [14]. The mutation in oim mice is a single nucleotide deletion (G) that alters the terminal approximately 50 amino acids of the pro-alpha 2 C-propeptide and prevents association with the pro-alpha 1 chains. As a result, α1(I) collagen homotrimers, instead of normal heterotrimer α1(I)2α1(I) collagen, could be produced in oim mice [15,16]. The oim model has been widely used to examine the mechanical properties of long bones at the tissue and cellular level and to develop therapeutics [17]. Surprisingly, no research has focused on studying the MCC and the subchondral bone in the oim, though both the tissues predominantly express type 1 collagen.

Therefore, the goal of this study was to characterize the osteochondral tissue (mandibular condylar cartilage and the subchondral bone) of TMJ in OI mice, and to determine the effects of bisphosphonates (alendronate) on the osteochondral tissue of TMJ during loading. In addition, since both male and female oim mice were analyzed, we also aim to investigate whether the TMJ phenotype and effects of alendronate on loading are gender-dependent.

Materials and methods

Transgenic mice

All the experimental procedures were approved by the Institutional Animal Care and Use Committee (IACUC) at University of Connecticut Health Center. Homozygous oim mice (oim/oim, Jackson laboratory, stock # 001815) of both genders were used to study the histological and mechanical characteristics of the osteochondral tissues of the TMJ, as well as the effects of bisphosphonates on these osteochondral tissues under compressive loading.

Study design

The 10-weeks-old male and female homozygous oim mice were randomly allocated to: (1) Control Group (8 male + 8 female); (2) Saline + Loaded (8 male + 8 female): mice were injected with saline every alternate day for 2 weeks, immediately followed by 5 days of functional loading. (3) ALN + Loaded (8 male + 8 female): mice were injected with ALN (alendronate sodium trihydrate, 50 μg/kg, Sigma Aldrich, St. Louis, MO) every alternate day for 2-weeks, immediately followed by 5 days of functional loading (Fig. 1a). The mice in groups (2) and (3) were loaded for one hour each day for 5 days (Fig. 1b). Twenty-four hours after the last loading, all the loaded and control mice were sacrificed.

Fig. 1

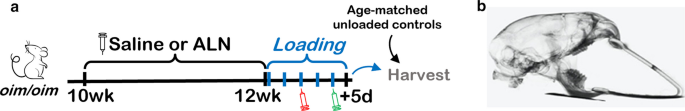

figure 1

a Schematic of experiments. b Compressive loading model of TMJ

Full size image

Functional loading model and fluorochrome labeling

The osteochondral tissue of the oim male and female mice in the Saline + Loaded and ALN + Loaded group were loaded in a compressive fashion using an established protocol [18,19,20,21,22]. Briefly, the oim mice were anesthetized with a mixture of ketamine (90 mg/kg) and Xylazine (13 mg/kg), then loaded with the customized spring made from Connecticut New Archform (CNA) wire (0.32inch), which delivered a force of 0.5N as measured by the Correx tension gauge (Haag-Streit, Bern, Switzerland).

All the mice in the control and experimental groups were injected intraperitoneally with alizarin red (Sigma, A3882, 20 mg/kg body weight) on the third day, and calcein (Fluka, 21,030, 10 mg/kg body weight) on the fifth day 3 h prior to sacrifice.

Micro-computed tomography (micro-CT) analysis

Mandible samples (n = 8 per group) were scanned with a μCT40 instrument (Scanco Medical AG, Bruttisellen, Switzerland). The technician performing scans and analysis was blinded to the treatment groups. Serial tomographic projections were acquired at 55 kV and 145μA, with a voxel size of 6 μm and 1000 projections per rotation were collected at 300,000 μs. The region of interest was the mushroom-shaped condylar head which includes the MCC and the subchondral bone. Bone volume fraction (BVF, %) and tissue density (TD, mg/ccmHA) were analyzed.

Tissue preparation, histology, and immunostaining

The condyles were dissected and fixed in 4% formaldehyde for 48 h, then transferred to 30% sucrose overnight and embedded in cryomedium (Thermo Shandon, Pittsburgh, PA, USA). Sagittal sections of the MCC along with the subchondral bone (5 μm-thick) were cut using a Leica cryostat (Nussloch, Germany). Our histological sections were stained and analyzed as previously described [23]. The sections were first imaged for the bone labels including alizarin red (red) and calcein (green). Baseline imaging of the sections was performed with an observer ZI fluorescent microscope (Carl Zeiss, Thornwood, NY, USA) using a cyan fluorescent protein filter (CFP, Chroma Cat 49001ET, EX: 436/20, EM: 480/40) and a RFPcherry filter that was also used for detecting alizarin red labeling (mCherry, Chroma Cat 49009ET, EX: 560/40, EM: 630/75). Sections were then stained for Tartrate Resistant Acid Phosphatase (TRAP) using ELF97 (Life Tech, Waltham, MA, USA), generating a yellow fluorescent signal. Afterwards, the coverslip was removed and stained for cell nuclei using DAPI (Thermo Fisher Scientific, Waltham, MA, USA) then reimaged. Finally, the slide was rinsed in distilled water then stained with Toluidine Blue (TB) and reimaged using bright field microscopy to examine the proteoglycans.

We also performed Safranin O staining, as well as immunohistochemistry for degeneration markers, including matrix metallopeptidase 13 (MMP13; Abcam, Cambridge, MA, USA) and ADAM metallopeptidase with thrombospondin type 1 motif 5 (ADAMTS5; Thermo Fisher Scientific, Waltham, MA).

Histomorphometric analyses

ImageJ (National Institutes of Health, Bethesda, MD) was used to quantify all the histological staining used in this research. We examined TRAP activity in MCC and subchondral bone by counting the number of yellow pixels and dividing by the total number of pixels in the subchondral bone region. Cartilage thickness was analyzed on the Toluidine Blue stained sections and was measured at three different points from anterior to posterior. Similarly, proteoglycan distance was quantified on the Safranin O sections and was measured at eight different regions from anterior to posterior. MMP13 and ADAMTS5 was quantified by percentage of red positive cells over DAPI positive cells.

Statistical analyses

All the data are expressed as mean ± SD. Differences among the control and two loaded groups of both genders were determined by two-way analysis of variance (ANOVA) with Tukey’s post-hoc test. All statistical tests were two sided and a p-value of < 0.05 was deemed to be statistically significant. Statistical analyses were computed using Graph Pad Prism (San Diego, CA, USA).

Results

Bone volume and remodeling

Upon altered loading, the bone volume fraction (BVF) and tissue density (TD) of the TMJ subchondral bone were significantly decreased in both genders when compared to the unloaded control (BVF: Saline + Loaded vs Control: p < 0.0001; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 2a, b. TD: Saline + Loaded vs Control: p < 0.0001; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 2a, c), indicating a catabolic effect of altered loading to the subchondral bone. However, when given alendronate prior to loading, this catabolic effect was prevented, as revealed by a significantly higher BVF and TD in ALN + Loaded group than in Saline + Loaded group (p < 0.0001); in fact, the alendronate pretreatment led to an even denser and stronger subchondral bone than the unloaded group (BVF and TD: p < 0.0001). Therefore, these data suggest a detrimental effect of altered loading on the TMJ subchondral bone volume and density, which could be prevented by the administration of alendronate prior to loading.

Fig. 2

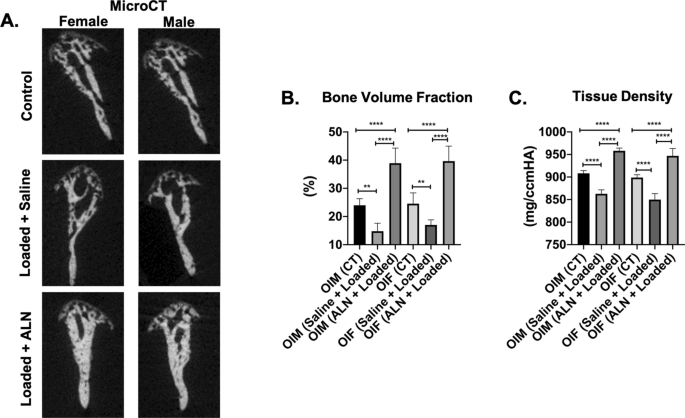

figure 2

Significant increased bone volume with mechanical loading and alendronate (ALN) treatment in OI mice. a Coronal micro–computed tomography (micro-CT) images of condyles of control and experimental groups (Saline + Loaded and ALN + Loaded), b bone volume fraction, c tissue density. Histograms (b, c) represent means ± standard deviation (SD) for n = 8 per group. Statistically significant difference between groups: **P < 0.001, ****P < 0.0001. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image

Similarly, altered loading of TMJ led to increased osteoclastic activity in Saline + Loaded group when compared to ALN + Loaded group and unloaded control group (TRAP: Saline + Loaded vs Control: p < 0.01; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 3a, b). Oim mice have inherent increased osteoclastic activity to remove the defective matrix and loading of TMJ accentuates the remodeling of the subchondral bone. In this light, our result signifies that ALN treatment before TMJ loading significantly reduces the osteoclastic activity which might have alleviated the bone loss observed in Saline + Loaded group (Fig. 3a, b).

Fig. 3

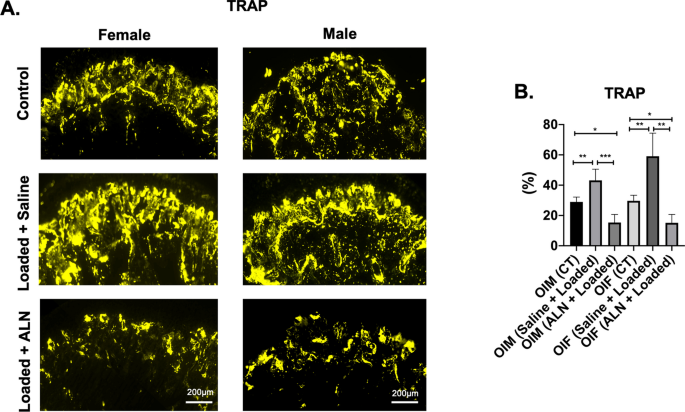

figure 3

Significant decreased TRAP (Tartrate resistant acid phosphatase) with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for TRAP in control and experimental groups (Saline + Loaded and ALN + Loaded), b Quantification of TRAP. Histograms (b) represent means ± standard deviation (SD) for n = 6 per group. Statistically significant difference between groups: *P < 0.05, **P < 0.001, ***P = 0.0001. a. Scale bar = 200 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image

Interestingly, our mineral apposition data parallels our BVF and osteoclastic activity data in both genders. Subsequent to altered loading of TMJ, mineral deposition as measured by alizarin intensity was significantly reduced in Saline + Loaded group when compared to ALN + Loaded group and unloaded control group (Alizarin intensity: Saline + Loaded vs Control: p < 0.01; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 4a, b). Notably, our data suggest that ALN not only have an effect on bone resorption/osteoclastic activity but also indirectly affects bone formation as revealed in significant increased alizarin intensity with pretreatment of ALN.

Fig. 4

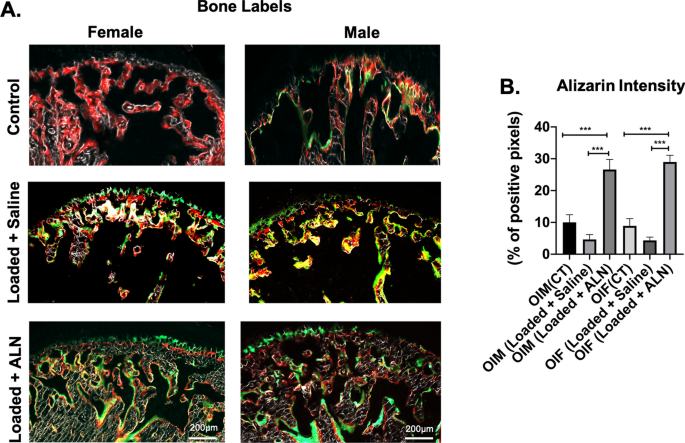

figure 4

Significant increased alizarin red intensity (bone formation) with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for bone labels in control and experimental groups (Saline + Loaded and ALN + Loaded), b quantification of alizarin red intensity. Histograms (b) represent means ± standard deviation (SD) for n = 6 per group. Statistically significant difference between groups: ***P = 0.0001, ****P < 0.0001. a. Scale bar = 200 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image

Cartilage thickness and proteoglycan distance

The altered loading of the TMJ led to significantly decreased cartilage thickness and proteoglycan distance in Saline + Loaded group when compared to ALN + Loaded group and unloaded control in both genders (cartilage thickness Saline + Loaded vs Control: p < 0.05; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 5a, b. proteoglycan distance Saline + Loaded vs Control: p < 0.0001; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 6a, b), thus predisposing the cartilage to early breakdown. Nonetheless, ALN pretreatment prevented the cartilage to breakdown with altered loading of TMJ, as indicated by significant increased cartilage thickness and proteoglycan distance (cartilage thickness: p < 0.0001 and proteoglycan distance: p < 0.004). These data suggest that ALN treatment improves the load bearing capacity of the cartilage and prevents the predisposition to early breakdown.

Fig. 5

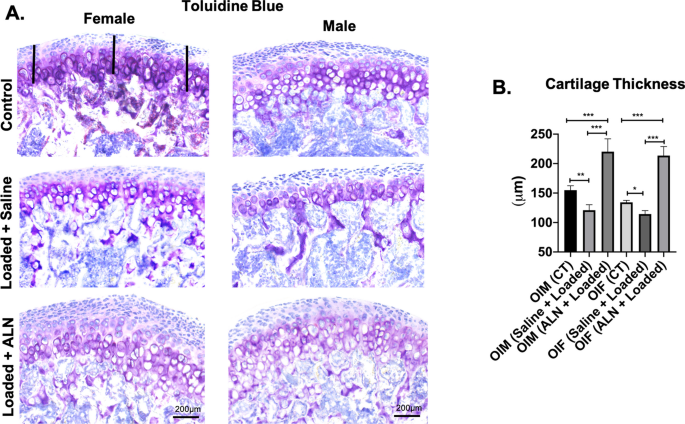

figure 5

Significant increased cartilage thickness with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for Toluidine Blue in control and experimental groups (Saline + Loaded and ALN + Loaded), b Quantification of cartilage thickness. Histograms (b) represent means ± standard deviation (SD) for n = 6 per group. Statistically significant difference between groups: **P < 0.001. (a). Scale bar = 200 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image
Fig. 6
figure 6

Significant increased proteoglycan distance (Safranin O staining) with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for Safranin O in control and experimental groups (Saline + Loaded and ALN + Loaded), b Quantification of proteoglycan distance from the tidemark. Histograms (b) represent means ± standard deviation (SD) for n = 6 per group. Statistically significant difference between groups: *P < 0.05, **P < 0.001, ***P = 0.0001. (a). Scale bar = 200 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image

Expression of cartilage degeneration markers

Consequent to altered TMJ loading, MMP13 and ADAMTS5 were significantly increased in both genders when compared to the ALN + Loaded and unloaded control (MMP13 Saline + Loaded vs Control: p < 0.05; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 7a, b. ADAMTS5 Saline + Loaded vs Control: p < 0.0001; Saline + Loaded vs ALN + Loaded: p < 0.0001; Fig. 8a, b), indicating cartilage degeneration due to degradation of collagen matrix (MMP13) and depletion of proteoglycan and aggrecan (ADAMTS5). However, administration of ALN prior to loading, suppressed the effects of cartilage degeneration as evidenced by increased proteoglycan distance (Fig. 6a, b) and cartilage thickness (Fig. 5a, b). Notably, ALN treatment before altered loading led to even lower levels of cartilage degeneration markers when compared to unloaded controls (MMP13: p < 0.001, Fig. 7a, b. ADAMTS5: p < 0.01, Fig. 8a, b). Our data suggest that pharmacologic inhibition of MMP13 and ADAMTS5 by ALN is an effective strategy to alleviate/slow down cartilage degeneration with altered loading of TMJ in OI mice model.

Fig. 7

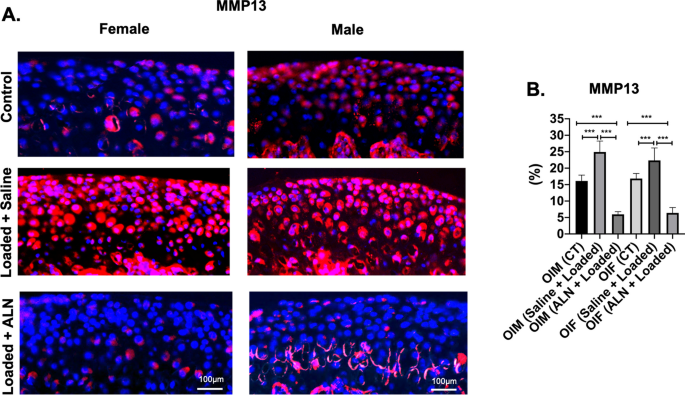

figure 7

Significant decreased MMP13 expression with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for MMP13 in control and experimental groups (Saline + Loaded and ALN + Loaded), b Quantification of MMP13 (percentage of red positive cells over DAPI positive cells). Histograms (b) represent means ± standard deviation (SD) for n = 5 per group. Statistically significant difference between groups: *P < 0.05, **P < 0.001, ***P = 0.0001. (a). Scale bar = 100 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image
Fig. 8

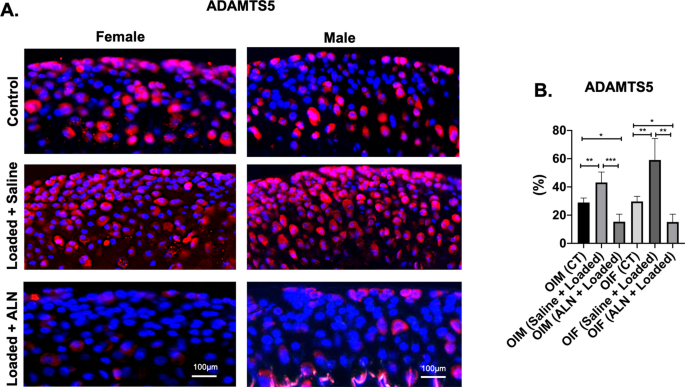

figure 8

Significant decreased ADAMTS5 expression with mechanical loading and alendronate (ALN) treatment in OI mice. a Sagittal sections of osteochondral tissue of TMJ stained for ADAMTS5 in control and experimental groups (Saline + Loaded and ALN + Loaded), b Quantification of ADAMTS5 (percentage of red positive cells over DAPI positive cells). Histograms (b) represent means ± standard deviation (SD) for n = 5 per group. Statistically significant difference between groups: ***P = 0.0001, ****P < 0.0001. (a). Scale bar = 100 µm. OIM: Osteogenesis imperfecta male; OIF: Osteogenesis imperfecta female

Full size image

Discussion

To the best of our knowledge, this is the first research studying the effects of mechanical loading on the osteochondral tissue of TMJ in osteogenesis imperfecta mouse model. Using multiple approaches, we examined the TMJ of both male and female oim mice under normal or altered loading, as well as the effects of ALN pretreatment on altered loading. Our key findings are as follows: (1) the altered loading of TMJ leads to sharp reduction in the bone volume fraction and tissue density of the subchondral bone, however, this catabolic effect can be prevented by the administration of ALN prior to loading; (2) the altered loading predisposes the mandibular condylar cartilage to early breakdown with decreased cartilage thickness and less proteoglycan distance, however, ALN treatment before altered loading can slow down this cartilage degeneration, possibly through an inhibitory effect on MMP13 and ADAMTS5; (3) the TMJ osteochondral changes in response to altered loading are comparable in male and female OI mice, meanwhile, the effects of alendronate pretreatment on altered loading are not gender-dependent.

Effects of loading and alendronate on subchondral bone

Understanding how the TMJ osteochondral tissue (cartilage and subchondral bone) adapts to mechanical loads is a continuing challenge to scientists and the clinicians. Loading of TMJ in normal murine model has been shown to increase both the bone volume and the tissue density [19,22], as the adaption to compressive load via surface osteoblast and osteoclasts results in increased appositional growth. However, in contrast, oim mice exhibited a significantly decreased subchondral bone volume and density upon compressive loading. This might be associated with the compromised mechanosensing and mechanotransduction in OI skeleton, which has been proved in both patients and animal model [24]. First, osteocytes are the main bone cell type responsible for sensing mechanical strain, orchestrating signals of resorption and formation, and building the mineralized bone structures [25,26,27]. However, the osteocytes in oim mice are malformed with more spherical shaped osteocyte lacunae and increased lacunar density, which compromises the mechanical integrity and the mechanosensing and transduction [28]. Similar osteocyte defects were also reported in other OI mouse models [29]. Second, profound muscle weakness was identified in oim mice [24,30], and compromised muscle–bone unit impacts mechanosensing. By breeding heterozygote + /oim mice to heterozygote myostatin deficiency (+ /mstn) mice, the congenic double heterozygote (+ /mstn + /oim) mice displayed greater body weight, muscle mass, bone volume, and biomechanical strength than their + /oim littermates, indicating a likely role of myostatin deficiency in rescuing the defective muscle-bone unit and improving the mechanotransduction in OI condition. Together, it is possible that the comprised mechanosensing and mechanotransduction in oim mice due to defective bone-muscle unit abolishes the anabolic effect of compressive loading on TMJ. Of note, even if a mechanical stimulus promotes bone formation in OI mice, the collagen produced is still defective and weakened matrix remains uncorrected [31].

Alendronate (bisphosphonates) is a commonly prescribed to treat OI. It binds to calcium of the subchondral bone, and is released from the acidified bone surface and then taken up by multinucleated osteoclasts. ALN induces the apoptosis of osteoclasts and thus inhibit bone resorption [32,33,34,35,36]. ALN treatment has shown the ability to retain subchondral bone and prevent osteochondral tissue degeneration following the initiation of knee osteoarthritis in multiple animal models [37,38,39,40]. Interestingly, the efficiency of bisphosphonates treatment for alleviating matrix degeneration may depend on several systemic and environmental factors, such as the rate of subchondral bone turnover; specifically, ALN has been shown to be more effective with high bone turnover [41].In oim model, the collagen ultrastructure and cross linking is affected and bone turnover is increased with enhanced osteoclastic activity. Thus, the pretreatment of ALN has effectively prevented the subchondral bone loss in oim mice under altered loading (Figs. 2 and 3). Furthermore, ALN directly interferes with osteoclastic phase of bone remodeling cycle (reducing bone resorption) [34,35,36] and indirectly stimulates bone formation [42] and that could be another plausible reason of increased bone volume fraction and mineralization.

Increased mineralization activity (alizarin intensity, Fig. 4) in ALN + Loaded group paralleled decreased osteoclastic activity and increased bone volume. ALN effects has been deeply studied on osteoclasts [43]; however, ALN is also known to have an indirect effect on bone formation by increasing the proliferation of osteoblasts residing on the surface [43,44]. In summary, ALN pretreatment substantially prevented the subchondral bone loss in OI male and female mice due to altered loading.

Effects of loading and alendronate on mandibular condylar cartilage

Cartilage degeneration is characterized by degradation of extracellular matrix and is primarily due to imbalance between the synthesis and metabolism of the extracellular matrix [45]. Mechanical loading of the osteochondral tissue in compressive manner has been shown to be anabolic (increased cartilage thickness, chondrocyte proliferation and increased proteoglycan area) [19,20,21,22]. In this study of OI mice, altered loading with ALN pretreatment resulted in increased cartilage thickness and proteoglycan area (Figs. 5 and 6). This agrees with a previous in vitro study where ALN treatment increases the expression of extracellular matrix related genes (Col2a1, Col9a2 and Aggrecan) by increasing the Sox-9 expression, a central regulator for proliferation of chondrocytes and extracellular matrix genes [46].

MMP13 [47] and ADAMTS5 [48,49] are established cartilage degeneration markers [45] and upregulation of MMP13 [47] and ADAMTS5 [48,49] play an important role in cartilage degeneration [45,47,49,50,51,52]. In particular, MMP13 plays a central role in degrading collagenase matrix [53,54], whereas ADAMTS5 is known to degrade aggrecan [55,56]. Increased expression of MMP13 signifies the active cartilage diseases and precedes cartilage degeneration and ALN treatment has been shown to reduce the MMP13 expression in knee articular cartilage45,47. In our study, MMP13 and ADAMTS5 expressions in ALN + Loaded group were significantly lower than Saline + Loaded and unloaded control groups (Figs. 7 and 8), indicating that ALN may downregulate key cartilage degeneration markers, which possibly explained the restoration of cartilage thickness and proteoglycan distance by ALN (Figs. 5 and 6).Overall, these observations lead us to conclude that TMJ cartilage was very responsive to ALN treatment in OI TMJ loading model. Notably, ALN administration before the loading of the TMJ was able to prevent the degradation of the extracellular matrix and was anabolic to cartilage. We observed increased cartilage thickness and proteoglycan distance and decreased MMP13 and ADAMTS5.

Our study had several strengths including the analyzing both male and female OI mice, and in-depth histological and micro-CT examination. To the best of our knowledge, this is the first study looking at the effects of ALN on compressive loading of the osteochondral tissue in an OIM model. Alendronate and other bisphosphonates therapy have been used successfully to treat OI individuals and have significantly improved the quality of life in children. However, bisphosphonates may lead to decreased bone remodeling, decreased resorption of the growth plate cartilage in children’s and delayed healing of the osteotomy sites. Our future studies will focus on using older mice (6–8-month-old) using anti-TNFα as a therapeutic, targeting RANK/RANKL signaling pathway.

Conclusion

Our present study demonstrated that ALN pretreatment can prevent the detrimental effects of loading on the osteochondral tissue of TMJ in OI mice model. Future research should unravel the signaling pathways involved in this process. Better understanding of the biological events during the loading of OI TMJ will help us identify therapeutic targets and provide tailored treatment options to the patients with OI.

Funding Sources

Research reported in this publication was supported by the National Institute of Dental and Craniofacial Research of the National Institute of Health under Award Number KO8DE025914, RO3DE030526, RO3DE030226 to SY and by the American Association of Orthodontic Foundation provided to SY.

References

  1. Forlino A, Cabral WA, Barnes AM, Marini JC. New perspectives on osteogenesis imperfecta. Nat Rev Endocrinol. 2011;7(9):540–57. https://doi.org/10.1038/nrendo.2011.81.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  2. Palomo T, Vilaca T, Lazaretti-Castro M. Osteogenesis imperfecta: diagnosis and treatment. Curr Opin Endocrinol Diabetes Obes. 2017;24(6):381–8. https://doi.org/10.1097/MED.0000000000000367.

    Article  CAS  PubMed  Google Scholar

  3. Rauch F, Glorieux FH. Osteogenesis imperfecta. Lancet. 2004;363(9418):1377–85. https://doi.org/10.1016/S0140-6736(04)16051-0.

    Article  CAS  PubMed  Google Scholar

  4. Rauch F, Travers R, Parfitt AM, Glorieux FH. Static and dynamic bone histomorphometry in children with osteogenesis imperfecta. Bone. 2000;26(6):581–9. https://doi.org/10.1016/s8756-3282(00)00269-6.

    Article  CAS  PubMed  Google Scholar

  5. Cole WG. The Nicholas Andry Award-1996. The molecular pathology of osteogenesis imperfecta. Clin Orthop Relat Res. 1997;343:235–48.

    Article  Google Scholar

  6. Dwan K, Phillipi CA, Steiner RD, Basel D. Bisphosphonate therapy for osteogenesis imperfecta. Cochrane Database Syst Rev. 2016;10:CD005088. https://doi.org/10.1002/14651858.CD005088.pub4.

    Article  PubMed  Google Scholar

  7. DiMeglio LA, Peacock M. Two-year clinical trial of oral alendronate versus intravenous pamidronate in children with osteogenesis imperfecta. J Bone Miner Res. 2006;21(1):132–40. https://doi.org/10.1359/JBMR.051006.

    Article  PubMed  Google Scholar

  8. Ward LM, Rauch F, Whyte MP, et al. Alendronate for the treatment of pediatric osteogenesis imperfecta: a randomized placebo-controlled study. J Clin Endocrinol Metab. 2011;96(2):355–64. https://doi.org/10.1210/jc.2010-0636.

    Article  CAS  PubMed  Google Scholar

  9. Salehpour S, Tavakkoli S. Cyclic pamidronate therapy in children with osteogenesis imperfecta. J Pediatr Endocrinol Metab Jan-Feb. 2010;23(1–2):73–80. https://doi.org/10.1515/jpem.2010.23.1-2.73.

    Article  CAS  Google Scholar

  10. Glorieux FH, Bishop NJ, Plotkin H, Chabot G, Lanoue G, Travers R. Cyclic administration of pamidronate in children with severe osteogenesis imperfecta. N Engl J Med. 1998;339(14):947–52. https://doi.org/10.1056/NEJM199810013391402.

    Article  CAS  PubMed  Google Scholar

  11. Wadhwa S, Kapila S. TMJ disorders: future innovations in diagnostics and therapeutics. J Dent Educ. 2008;72(8):930–47.

    Article  PubMed  PubMed Central  Google Scholar

  12. Chen J, Utreja A, Kalajzic Z, Sobue T, Rowe D, Wadhwa S. Isolation and characterization of murine mandibular condylar cartilage cell populations. Cells Tissues Organs. 2012;195(3):232–43. https://doi.org/10.1159/000325148.

    Article  CAS  PubMed  Google Scholar

  13. Shibukawa Y, Young B, Wu C, et al. Temporomandibular joint formation and condyle growth require Indian hedgehog signaling. Dev Dyn. 2007;236(2):426–34. https://doi.org/10.1002/dvdy.21036.

    Article  CAS  PubMed  Google Scholar

  14. Chipman SD, Sweet HO, McBride DJ Jr, et al. Defective pro alpha 2(I) collagen synthesis in a recessive mutation in mice: a model of human osteogenesis imperfecta. Proc Natl Acad Sci U S A. 1993;90(5):1701–5. https://doi.org/10.1073/pnas.90.5.1701.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  15. Nicholls AC, Osse G, Schloon HG, et al. The clinical features of homozygous alpha 2(I) collagen deficient osteogenesis imperfecta. J Med Genet. 1984;21(4):257–62. https://doi.org/10.1136/jmg.21.4.257.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  16. Pope FM, Nicolls AC, Osse G, Lee KW. Clinical features of homozygous alpha 2(I) collagen deficient osteogenesis imperfecta. J Med Genet. 1986;23(4):377. https://doi.org/10.1136/jmg.23.4.377.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Fratzl P, Paris O, Klaushofer K, Landis WJ. Bone mineralization in an osteogenesis imperfecta mouse model studied by small-angle x-ray scattering. J Clin Invest. 1996;97(2):396–402. https://doi.org/10.1172/JCI118428.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  18. Chen J, Sorensen KP, Gupta T, Kilts T, Young M, Wadhwa S. Altered functional loading causes differential effects in the subchondral bone and condylar cartilage in the temporomandibular joint from young mice. Osteoarthr Cartil. 2009;17(3):354–61. https://doi.org/10.1016/j.joca.2008.05.021.

    Article  CAS  Google Scholar

  19. Kaul R, O’Brien MH, Dutra E, Lima A, Utreja A, Yadav S. The effect of altered loading on mandibular condylar cartilage. PLoS ONE. 2016;11(7): e0160121. https://doi.org/10.1371/journal.pone.0160121.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  20. Utreja A, Dyment NA, Yadav S, et al. Cell and matrix response of temporomandibular cartilage to mechanical loading. Osteoarthr Cartil. 2016;24(2):335–44. https://doi.org/10.1016/j.joca.2015.08.010.

    Article  CAS  Google Scholar

  21. Dutra EH, O’Brien MH, Logan C, Tadinada A, Nanda R, Yadav S. Loading of the condylar cartilage can rescue the effects of botox on TMJ. Calcif Tissue Int. 2018;103(1):71–9. https://doi.org/10.1007/s00223-017-0385-x.

    Article  CAS  PubMed  Google Scholar

  22. Sobue T, Yeh WC, Chhibber A, et al. Murine TMJ loading causes increased proliferation and chondrocyte maturation. J Dent Res. 2011;90(4):512–6. https://doi.org/10.1177/0022034510390810.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  23. Zhou Y, Al-Naggar IMA, Chen PJ, et al. Senolytics alleviate the degenerative disorders of temporomandibular joint in old age. Aging Cell. 2021;20(7): e13394. https://doi.org/10.1111/acel.13394.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  24. Phillips CL, Jeong Y. Osteogenesis imperfecta: muscle-bone interactions when bi-directionally compromised. Curr Osteoporos Rep. 2018;16(4):478–89. https://doi.org/10.1007/s11914-018-0456-6.

    Article  PubMed  Google Scholar

  25. Bonewald LF, Johnson ML. Osteocytes, mechanosensing and Wnt signaling. Bone. 2008;42(4):606–15. https://doi.org/10.1016/j.bone.2007.12.224.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  26. Bonewald LF. The role of the osteocyte in bone and nonbone disease. Endocrinol Metab Clin North Am. 2017;46(1):1–18. https://doi.org/10.1016/j.ecl.2016.09.003.

    Article  PubMed  Google Scholar

  27. Wang K, Ren Y, Lin S, et al. Osteocytes but not osteoblasts directly build mineralized bone structures. Int J Biol Sci. 2021;17(10):2430–48. https://doi.org/10.7150/ijbs.61012.

    Article  PubMed  PubMed Central  Google Scholar

  28. Carriero A, Doube M, Vogt M, et al. Altered lacunar and vascular porosity in osteogenesis imperfecta mouse bone as revealed by synchrotron tomography contributes to bone fragility. Bone. 2014;61:116–24. https://doi.org/10.1016/j.bone.2013.12.020.

    Article  CAS  PubMed  Google Scholar

  29. Muir AM, Ren Y, Butz DH, et al. Induced ablation of Bmp1 and Tll1 produces osteogenesis imperfecta in mice. Hum Mol Genet. 2014;23(12):3085–101. https://doi.org/10.1093/hmg/ddu013.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  30. Oestreich AK, Carleton SM, Yao X, et al. Myostatin deficiency partially rescues the bone phenotype of osteogenesis imperfecta model mice. Osteoporos Int. 2016;27(1):161–70. https://doi.org/10.1007/s00198-015-3226-7.

    Article  CAS  PubMed  Google Scholar

  31. Kalajzic I, Terzic J, Rumboldt Z, et al. Osteoblastic response to the defective matrix in the osteogenesis imperfecta murine (oim) mouse. Endocrinology. 2002;143(5):1594–601. https://doi.org/10.1210/endo.143.5.8807.

    Article  CAS  PubMed  Google Scholar

  32. Rogers MJ, Crockett JC, Coxon FP, Monkkonen J. Biochemical and molecular mechanisms of action of bisphosphonates. Bone. 2011;49(1):34–41. https://doi.org/10.1016/j.bone.2010.11.008.

    Article  CAS  PubMed  Google Scholar

  33. Coxon FP, Thompson K, Roelofs AJ, Ebetino FH, Rogers MJ. Visualizing mineral binding and uptake of bisphosphonate by osteoclasts and non-resorbing cells. Bone. 2008;42(5):848–60. https://doi.org/10.1016/j.bone.2007.12.225.

    Article  CAS  PubMed  Google Scholar

  34. Park IH, Ro J, Nam BH, Kwon Y, Lee KS. Potential antitumor effects of nitrogen-containing bisphosphonate in hormone receptor negative breast cancer patients with bone metastases. BMC Cancer. 2009;9:154. https://doi.org/10.1186/1471-2407-9-154.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  35. Fleisch H. Development of bisphosphonates. Breast Cancer Res. 2002;4(1):30–4. https://doi.org/10.1186/bcr414.

    Article  CAS  PubMed  Google Scholar

  36. van Beek ER, Cohen LH, Leroy IM, Ebetino FH, Lowik CW, Papapoulos SE. Differentiating the mechanisms of antiresorptive action of nitrogen containing bisphosphonates. Bone. 2003;33(5):805–11. https://doi.org/10.1016/j.bone.2003.07.007.

    Article  CAS  PubMed  Google Scholar

  37. Hayami T, Pickarski M, Wesolowski GA, et al. The role of subchondral bone remodeling in osteoarthritis: reduction of cartilage degeneration and prevention of osteophyte formation by alendronate in the rat anterior cruciate ligament transection model. Arthritis Rheum. 2004;50(4):1193–206. https://doi.org/10.1002/art.20124.

    Article  CAS  PubMed  Google Scholar

  38. Ding M, Danielsen CC, Hvid I. The effects of bone remodeling inhibition by alendronate on three-dimensional microarchitecture of subchondral bone tissues in guinea pig primary osteoarthrosis. Calcif Tissue Int. 2008;82(1):77–86. https://doi.org/10.1007/s00223-007-9093-2.

    Article  CAS  PubMed  Google Scholar

  39. Jones MD, Tran CW, Li G, Maksymowych WP, Zernicke RF, Doschak MR. In vivo microfocal computed tomography and micro-magnetic resonance imaging evaluation of antiresorptive and antiinflammatory drugs as preventive treatments of osteoarthritis in the rat. Arthritis Rheum. 2010;62(9):2726–35. https://doi.org/10.1002/art.27595.

    Article  PubMed  Google Scholar

  40. Shirai T, Kobayashi M, Nishitani K, et al. Chondroprotective effect of alendronate in a rabbit model of osteoarthritis. J Orthop Res. 2011;29(10):1572–7. https://doi.org/10.1002/jor.21394.

    Article  CAS  PubMed  Google Scholar

  41. Khorasani MS, Diko S, Hsia AW, et al. Effect of alendronate on post-traumatic osteoarthritis induced by anterior cruciate ligament rupture in mice. Arthritis Res Ther. 2015;17:30. https://doi.org/10.1186/s13075-015-0546-0.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  42. Shimizu E, Tamasi J, Partridge NC. Alendronate affects osteoblast functions by crosstalk through EphrinB1-EphB. J Dent Res. 2012;91(3):268–74. https://doi.org/10.1177/0022034511432170.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  43. Komatsu K, Shimada A, Shibata T, et al. Alendronate promotes bone formation by inhibiting protein prenylation in osteoblasts in rat tooth replantation model. J Endocrinol. 2013;219(2):145–58. https://doi.org/10.1530/JOE-13-0040.

    Article  CAS  PubMed  Google Scholar

  44. Vieira JS, Giovanini A, Gorhinger I, Gonzaga CC, Costa-Casagrande TA, Deliberador TM. Use of low-dose alendronate improves cranial bone repair and is associated with an increase of osteocalcin: an experimental study. J Oral Maxillofac Surg. 2017;75(9):1873–81. https://doi.org/10.1016/j.joms.2017.03.050.

    Article  PubMed  Google Scholar

  45. van den Berg WB. Osteoarthritis year 2010 in review: pathomechanisms. Osteoarthritis Cartilage. 2011;19(4):338–41. https://doi.org/10.1016/j.joca.2011.01.022.

    Article  PubMed  Google Scholar

  46. Wang L, Mi B, Zhang Y, Yan H, Zhu H. Alendronate promotes the gene expression of extracellular matrix mediated by SP-1/SOX-9. Hum Exp Toxicol. 2021;40(7):1173–82. https://doi.org/10.1177/0960327120988875.

    Article  CAS  PubMed  Google Scholar

  47. Blom AB, van Lent PL, Libregts S, et al. Crucial role of macrophages in matrix metalloproteinase-mediated cartilage destruction during experimental osteoarthritis: involvement of matrix metalloproteinase 3. Arthritis Rheum. 2007;56(1):147–57. https://doi.org/10.1002/art.22337.

    Article  CAS  PubMed  Google Scholar

  48. Lin EA, Liu CJ. The role of ADAMTSs in arthritis. Protein Cell. 2010;1(1):33–47. https://doi.org/10.1007/s13238-010-0002-5.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  49. Jones GC, Riley GP. ADAMTS proteinases: a multi-domain, multi-functional family with roles in extracellular matrix turnover and arthritis. Arthritis Res Ther. 2005;7(4):160–9. https://doi.org/10.1186/ar1783.

    Article  PubMed  PubMed Central  Google Scholar

  50. Yan JY, Tian FM, Wang WY, et al. Parathyroid hormone (1–34) prevents cartilage degradation and preserves subchondral bone micro-architecture in guinea pigs with spontaneous osteoarthritis. Osteoarthr Cartil. 2014;22(11):1869–77. https://doi.org/10.1016/j.joca.2014.07.013.

    Article  Google Scholar

  51. Dai MW, Chu JG, Tian FM, et al. Parathyroid hormone(1–34) exhibits more comprehensive effects than celecoxib in cartilage metabolism and maintaining subchondral bone micro-architecture in meniscectomized guinea pigs. Osteoarthr Cartil. 2016;24(6):1103–12. https://doi.org/10.1016/j.joca.2016.01.007.

    Article  Google Scholar

  52. Bei M, Tian F, Liu N, et al. A novel rat model of patellofemoral osteoarthritis due to patella Baja, or low-lying patella. Med Sci Monit. 2019;25:2702–17. https://doi.org/10.12659/MSM.915018.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  53. Neuhold LA, Killar L, Zhao W, et al. Postnatal expression in hyaline cartilage of constitutively active human collagenase-3 (MMP-13) induces osteoarthritis in mice. J Clin Invest. 2001;107(1):35–44. https://doi.org/10.1172/JCI10564.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  54. Wang M, Sampson ER, Jin H, et al. MMP13 is a critical target gene during the progression of osteoarthritis. Arthritis Res Ther. 2013;15(1):5. https://doi.org/10.1186/ar4133.

    Article  CAS  Google Scholar

  55. Stanton H, Rogerson FM, East CJ, et al. ADAMTS5 is the major aggrecanase in mouse cartilage in vivo and in vitro. Nature. 2005;434(7033):648–52. https://doi.org/10.1038/nature03417.

    Article  CAS  PubMed  Google Scholar

  56. Glasson SS, Askew R, Sheppard B, et al. Deletion of active ADAMTS5 prevents cartilage degradation in a murine model of osteoarthritis. Nature. 2005;434(7033):644–8. https://doi.org/10.1038/nature03369.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

We would like to thank Ivo Kalajzic for providing the OI mice for breeding and Mara O’Brien for help with breeding. We would also like to thank Li Chen for assisting with imaging of histological slides.

Author information

Authors and Affiliations

  1. Department of Growth and Development, College of Dentistry, University of Nebraska Medical Center, Lincoln/Omaha, NE, USA

    Po-Jung Chen

  2. Department of Orthodontics, School of Dentistry, Texas A&M University, Dallas, TX, USA

    Shivam Mehta

  3. Division of Orthodontics, School of Dental Medicine, UConn Health, Farmington, CT, USA

    Eliane H. Dutra

  4. Department of Growth and Development, College of Dentistry, University of Nebraska Medical Center, Lincoln/Omaha, NE, USA

    Sumit Yadav

Authors
  1. Po-Jung Chen
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Shivam Mehta
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Eliane H. Dutra
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Sumit Yadav
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

Conceptualization and Methodology: P-JC, SM, SY. Data collection: P-JC, SM, SY. Data Interpretation: P-JC, EHD, SM, SY. Manuscript preparation: P-JC, SM, EHD, SY. manuscript approval: P-JC, SM, EHD, SY. Funding: SY. Project administration: SY.

Corresponding author

Correspondence to Po-Jung Chen.

Ethics declarations

Ethics approval and consent to participate

All the experimental procedures were approved by the Institutional Animal Care and Use Committee (IACUC) at University of Connecticut Health Center.

Consent for publication

All authors have approved the manuscript and agree with its submission to Progress in Orthodontics.

Availability of data and material

The datasets underlying this article are available upon reasonable request to the corresponding author.

Competing interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Chen, PJ., Mehta, S., Dutra, E.H. et al. Alendronate treatment rescues the effects of compressive loading of TMJ in osteogenesis imperfecta mice. Prog Orthod. 25, 25 (2024). https://doi.org/10.1186/s40510-024-00526-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40510-024-00526-2

Keywords
