Open Access

Quantification of skeletal asymmetries in normal adolescents: cone-beam computed tomography analysis

  • Derek A Sanders1,
  • Taranpreet K Chandhoke2Email author,
  • Flavio A Uribe2,
  • Paul H Rigali3 and
  • Ravindra Nanda4
Progress in Orthodontics201415:26

https://doi.org/10.1186/s40510-014-0026-0

Received: 10 September 2013

Accepted: 16 January 2014

Published: 1 April 2014

Abstract

Background

The detection and quantification of skeletal asymmetries is a fundamental component to diagnosis and treatment planning in orthodontics. The purpose of this study was to identify and quantify the characteristics of facial and dental asymmetries in a normal, adolescent population using 3D imaging.

Methods

Thirty consecutive Class I patients (mean age 14.32 years, SD 1.67) meeting the inclusion criteria were analyzed by three-dimensional cone-beam computed tomography (CBCT). Dental, maxillary, mandibular, and cranial base variables were measured with Dolphin 3D. CBCT analysis consisted of the localization of 34 anatomical landmarks. All reference points were digitized in 3D and analyzed using 67 skeletal and dental measurements. Student's t tests for paired samples were used with a significance level of p < 0.05.

Results

Minor right-left discrepancies were noted in all planes. The most anterior point of the glenoid fossa and most condylar points were positioned more superior and lateral on the right side, compared to the left side. Porion was also located more superiorly on the right side relative to the left side. The posterior nasal spine was found to be located to the right of the midsagittal plane. Slight dental midline discrepancies were found, and the dental arch lengths were slightly longer on the left side compared to the right. The height of the ramus, in both 3D and 2D, and the inclination of the ramus were greater on the right than that on the left side.

Conclusions

The findings of this study suggest minor asymmetries exist and are likely a common occurrence in the normal human craniofacial complex. Additionally, a natural compensatory mechanism may exist which controls the size and shape of specific tissues in order to maintain functional symmetry.

Background

Dentofacial asymmetries can pose a significant challenge to orthodontic treatment and an accurate diagnosis is key to localize the asymmetry and determine the best treatment strategy. Severe forms of dentofacial deformities, such as those caused by syndromes like hemifacial microsomia, cleft palate, or hemimandibular hyperplasia, have been well described in the literature [13]. However, minor asymmetries are significantly more common in the general population but have not been studied as extensively. Asymmetries have been traditionally diagnosed through the analysis of postero-anterior (PA) X-rays, photographs and dental models [2, 4, 5]. Radiographs offer the benefit of measuring the skeletal component of an asymmetry, but 2D images, like PA cephalograms, are limited due to the presence of numerous artifacts, overlapping structures and magnification distortion [6, 7]. The advent of three-dimensional imaging through cone-beam computed tomography (CBCT) offers the possibility of accurate localization and quantification of asymmetries without distortion. In patients with significant mandibular asymmetry, CBCT has been employed to quantify the degree of asymmetry with a high degree of accuracy compared to two-dimensional images [811]. No studies have yet been published with normative 3D values of asymmetry for patients with normal occlusions. The purpose of this study was to identify and quantify dentofacial asymmetries in a normal, adolescent population.

Methods

Subjects

This study was conducted in accordance with a protocol approved by the Institutional Review Board of the University of Connecticut (IRB #08-298-1). CBCT scans and records from two orthodontic offices (Dr. Rigali and Dr. Roy) that routinely use 3D imaging for comprehensive orthodontic diagnosis and treatment planning were reviewed. CBCT images, clinical examination records, dental models, and photographs were reviewed and subjects were selected based on the following inclusion criteria: (1) Class I molar relationship, (2) teeth in occlusion from second molar to second molar, (3) no malformed or missing teeth, (4) coincident dental and facial midlines, (5) no dental or skeletal asymmetries on clinical exam, (6) no previous orthodontic treatment, (7) no crossbites, (8) no history of facial trauma or medical conditions that may have altered growth, (9) symmetrical spacing or crowding up to 3 mm per arch, (10) age from 10 to 18. The final study sample was determined by two investigators (PHR and DS) and consisted of 30 consecutive patients (16 boys, 14 girls) with an average age of 14.32 years (SD 1.67 years). The sample included 28 Caucasians, 1 Asian, and 1 African-American. Figure 1 shows volumetric frontal views for each patient included in this study.
Figure 1

Volumetric images of each of the 30 Class I subjects included in the study.

CBCT acquisition

Full-head CBCT scans (i-CAT Classic, Imaging Sciences International, Hatfield, PA, USA) were acquired with patients in maximum intercuspation. A 16.0 cm (diameter) × 13.0 to 22.0 cm (height) field of view at a resolution of 0.4 mm voxels was used for each volumetric data set with an acquisition setting of 120 kVp and 5 mA based on the manufacturer's specifications. The scan times ranged from 20 (13.0 cm) to 40 s (22.0 cm) depending on the vertical height of the field of view selected by the clinician based on patient factors like the skull size and height. Reconstructed data (by Xoran i-CAT software, version 2.1.22) was exported as a 12-bit-depth digital imaging and communications in medicine (DICOM) file. Final analysis of the DICOM data was completed using Dolphin 3D (version 10.5, Dolphin Imaging, Chatsworth, CA, USA).

CBCT orientation and landmark identification

Orientation of each data set was completed in three planes of space (x, y, and z) using volumetric rendering and multiple planar views within Dolphin 3D (Figure 2). First, the sagittal plane (x) was constructed bisecting paired midfacial anatomic structures (i.e., orbits, frontal process of the maxilla, and frontozygomatic suture). The axial plane (y) was then constructed as a line connecting the most superior point of the external acoustic meatus (porion) with the most inferior point of the infraorbital rim (orbitale) on the right and left sides, which would correspond similarly to the Frankfort horizontal plane in 2D. Finally, the coronal plane (z) was constructed using the transporionic line and fixed perpendicular to the axial and sagittal planes. Using modified orthodontic cephalometric landmarks, 34 anatomic landmarks were defined and digitized (Table 1) [12]. Coordinate data for each defined landmark was exported to an Excel database (Excel 2007, Microsoft, Redmond, WA, USA) and orthogonal, linear, and angular measurements were calculated.

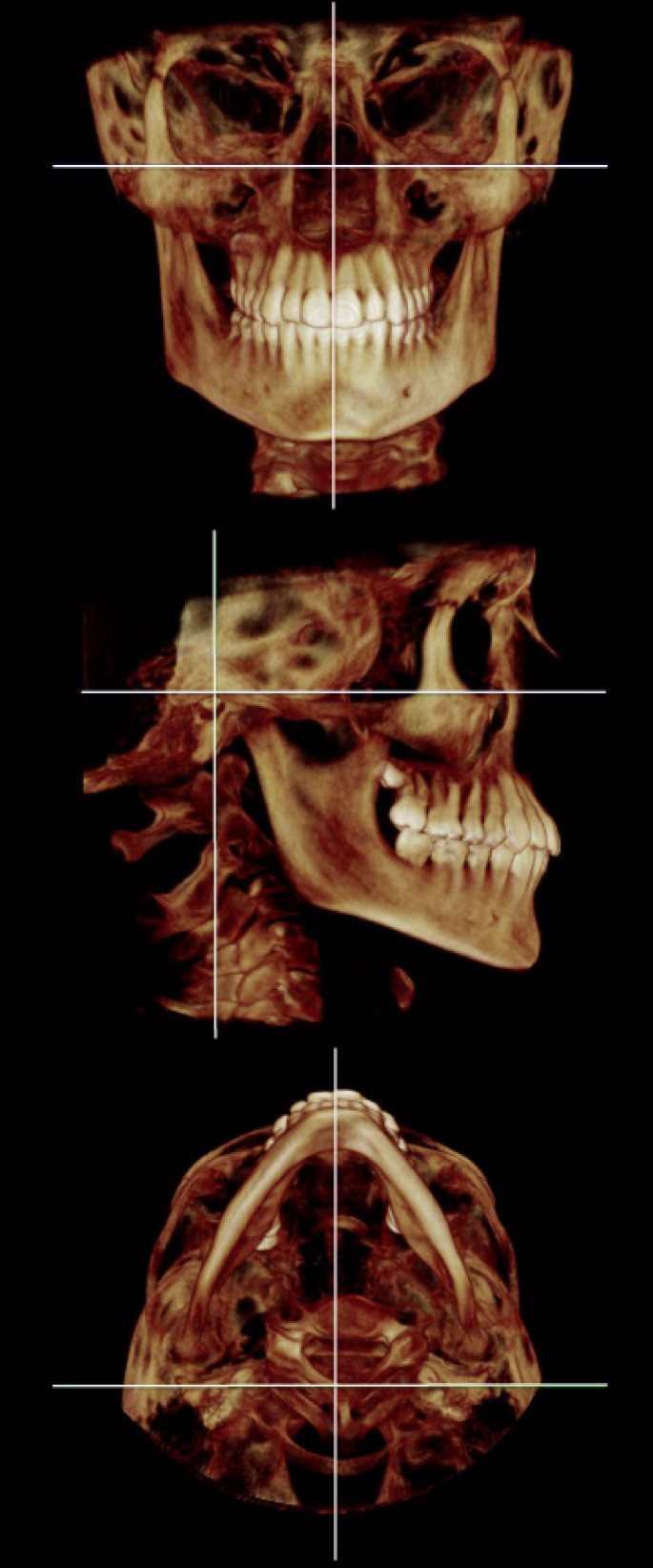

Figure 2

Volumetric renderings of the reference planes used in the study.

Table 1

Study landmarks and reference planes

Landmarks



Definition

Sagittal slice

Axial slice

Coronal slice

Dental

Mx1

Maxillary central incisors

Incisal contact point of the maxillary central incisors

Inferior-most point

Contact point

Incisal embrasure



Md1

Mandibular central incisors

Incisal contact point of the mandibular central incisors

Inferior-most point

Contact point

Incisal embrasure



Mx3R and Mx3L

Maxillary canine

Cusp tip of the maxillary canine

Inferior-most point

First point that appears

Inferior-most point



Md3R and Mx3L

Mandibular canine

Cusp tip of the mandibular canine

Superior-most point

First point that appears

Superior-most point



Mx6R and Mx6L

Maxillary first molar

Mesiobuccal cusp tip of the maxillary first molar

Inferior-most point

First point that appears

Middle-inferior-most point



Md6R and Mx6L

Mandibular first molar

Buccal groove of the mandibular first molar

Inferior-most point between the buccal cusps

First point that appears

Superior-most point in line with the buccal cusps

Midface

ANS

Anterior nasal spine

The most anterior midpoint of the anterior nasal spine of the maxilla

Lateral-most point

Superior-most point

First point that appears



PNS

Posterior nasal spine

The most posterior midpoint of the posterior nasal spine of the palatine bone

Lateral-most point

Inferior-most point

First point that appears



OrR and OrL

Orbitale

The most inferior point on the infraorbital rim of the maxilla

Inferior-most point of the infraorbital rim

Anterior-most point

Inferior-most point of the infraorbital rim



FZSR and FZSL

Frontozygomatic suture

The most superior and medial point on the frontozygomatic suture

Superior-most point

Anterior-most point

Medial-superior most point



FPMR and FPML

Frontal process of maxilla

Intersection of the frontal process of the maxilla, frontal bone and lacrimal bone

Superior-most point

Anterior-most point

Medial-superior most point

Mandible

Me

Menton

The most inferior midpoint of the chin on the outline of the mandibular symphysis

Inferior-most point

First point that appears

Middle-most point along the inferior border



Pg

Pogonion

The most anterior midpoint of the chin on the outline of the mandibular symphysis

Inferior-most point

Superior-most point

First point that appears



GoR and GoL

Gonion

The midpoint on the angle of the mandible, half way between the corpus and ramus

Middle-most point along the angle of the mandible

Middle-inferior-most point

Middle-inferior-most point



CdSR and CdSL

Condyle superior

The most superior point of the condylar head

Superior-most point

First point that appears

Superior-most point



CdLR and CdLL

Condyle lateral pole

The most lateral point of the condylar head

First point that appears

Lateral-most point of the widest section of the condyle

Lateral-most point



CdMR and CdML

Condyle medial pole

The most medial point of the condylar head

First point that appears

Medial-most point of the widest section of the condyle

Medial-most point



CdAR and CdAL

Condyle anterior

The most anterior point of the condylar head

Anterior-most point

Middle-most point on the anterior surface of the widest section of the condyle

Medial-most point



CdPR and CdAL

Condyle posterior

The most posterior point of the condylar head

Posterior-most point

Middle-most point on the posterior surface of the widest section of the condyle

N/A

Temporal bone

GlSR and GlSL

Glenoid fossa superior

The most superior point of the glenoid fossa of the temporal bone

Superior-most point

First point that appears

Superior-most point



GlAR and GlAL

Glenoid fossa Anterior

The most inferior point of the articular eminence of the temporal bone

Inferior-most point on the articular eminence

Anterior-most point

Superior-most point



PoR and PoL

Porion

The most superior point of the external acoustic meatus

Superior-most point of the external acoustic meatus

First point that appears

Superior-most point of the external acoustic meatus

Reference planes

Axial plane

A plane that connects the most superior point of the external acoustic meatus with the most inferior point of the infraorbital rim on the right and left sides

Sagittal plane

A plane constructed using paired midfacial anatomic structures (eg., the orbits, frontal process of the maxilla, frontozygomatic suture)

Coronal plane

A plane constructed from the transporionic line

Measurements

Orthogonal measurements were defined using sagittal, axial, and coronal planes and measured as perpendicular millimeter distances from the specific 3D landmark to each of the reference planes. Dental and dentoalveolar asymmetry, mandibular morphologic asymmetry, and condylar morphologic asymmetry were expressed as linear and angular measurements in millimeters and degrees, respectively (Table 2).
Table 2

Definition of measurements



Variable

Definition

Dental

A-P molar differential (mm)

The difference of Mx6 (z) and Md6 (z)

Midline differential (mm)

The absolute difference of Mx1 (x) and Md1 (x)

Overbite (mm)

Mx1 (y) minus Md1 (y)

Overjet (mm)

Mx1 (z) minus Md1 (z)

Maxillary arch length (mm)

Distance (x, y, z) between Mx6 and Mx1

Mandibular arch length (mm)

Distance (x, y, z) between Md6 and Mx1

Midface

Palatal plane to the sagittal plane (o)

Angulation (x, z) between ANS-PNS and the sagittal plane

Mandibular

Mandibular length in 3D (mm)

Distance (x, y, z) between CdS and Pg

Mandibular length in 2D (mm)

Distance (y, z) between CdS and Pg

Ramus height in 3D (mm)

Distance (x, y, z) between CdS and Go

Ramus height in 2D (mm)

Distance (y, z) between CdS and Go

Corpus length in 3D (mm)

Distance (x, y, z) between Go and Pg

Corpus length in 2D (mm)

Distance (y, z) between Go and Pg

Gonial angle (o)

Angulation (y, z) between CdS, Go, and Pg

Mandibular plane angle (o)

Angulation (y, z) between Go-Pg and the Frankfort horizontal

Ramus inclination to the sagittal plane (o)

Angulation (x, y) between CdL-Go and the sagittal plane

Dental and chin inclination (o)

Angulation (x, y) between Md1-Me and the sagittal plane

Condylar

Mediolateral diameter of condylar head in 3D (mm)

Distance (x, y, z) between CdL and CdM

Mediolateral diameter of condylar head in 2D (mm)

Distance (x, y) between CdL and CdM

Anteroposterior diameter of condylar head in 3D (mm)

Distance (x, y, z) between CdA and CdP

Anteroposterior diameter of condylar head in 2D (mm)

Distance (y, z) between CdA and CdP

Superior joint space in 3D (mm)

Distance (x, y, z) between CdS and GlS

Superior joint space in 2D (mm)

Distance (x, y) between CdS and GlS

Condylar head inclination to the coronal plane (o)

Angulation (x, z) between CdL-CdM and the coronal plane

Condylar head inclination to the axial plane (o)

Angulation (x, y) between CdL-CdM and the axial plane

Statistical analysis

One investigator (DS) completed all measurements and intrarater reliability was assessed using the intraclass correlation coefficient (ICC) on a random sample of 10 patients, with each variable measured at two time points, 2 weeks apart. Once intrarater reliability was established, right-left and absolute measurements were analyzed using Student's t tests for paired samples in the SPSS software program (version 14.0.1, SPSS, Chicago, IL, USA) with a significance of p < 0.05.

Results

Intrarater reliability was measured, with high ICC values for each variable in all three reference planes as reported previously [12]. Measurements are presented as mean values ± the standard deviation for each point described. For orthogonal differences relative to the axial plane (Table 3), glenoid fossa anterior (GlA) was found to be placed 0.47 ± 1.08 mm superiorly on the right side relative to the left (p < 0.05). In addition, porion (Po) was also found to be positioned 0.37 ± 0.88 mm superiorly on the right side (p < 0.05). Measurements to the coronal plane were all found to be non-significant (Table 4).
Table 3

Orthogonal left-right differences from axial plane



Variable

Mean

SD

95%confidence interval

pvalue

Lower

Upper

Dental

Mx3 (y) to the axial plane (mm)

−0.11

0.96

−0.46

0.25

0.55

Md3 (y) to the axial plane (mm)

0.00

0.62

−0.24

0.23

0.98

Mx6 (y) to the axial plane (mm)

0.12

0.90

−0.22

0.46

0.47

Md6 (y) to the axial plane (mm)

−0.01

0.88

−0.34

0.32

0.95

Midface

Or (y) to the axial plane (mm)

−0.09

0.75

−0.37

0.19

0.52

Go (y) to the axial plane (mm)

0.5

1.43

−0.03

1.03

0.07

Mandible

CdS (y) to the axial plane (mm)

−0.22

0.93

−0.56

0.13

0.21

CdL (y) to the axial plane (mm)

0.03

1.12

−0.39

0.45

0.9

CdM (y) to the axial plane (mm)

−0.14

1.07

−0.54

0.26

0.49

CdA (y) to the axial plane (mm)

−0.02

1.01

−0.4

0.36

0.91

CdP (y) to the axial plane (mm)

−0.05

1.02

−0.43

0.33

0.79

Temporal bone

GlS (y) to the axial plane (mm)

−0.12

0.76

−0.4

0.17

0.41

GlA (y) to the axial plane (mm)

−0.47

1.08

−0.87

−0.06

0.025*

Po (y) to the axial plane (mm)

−0.37

0.88

−0.7

−0.04

0.03*

*p < 0.05.

Table 4

Orthogonal left-right differences from coronal plane



Variable

Mean

SD

95%confidence interval

pvalue

Lower

Upper

Dental

Mx3 (z) to the coronal plane (mm)

0.00

0.94

−0.35

0.35

0.94

Md3 (z) to the coronal plane (mm)

−0.01

0.77

−0.30

0.27

0.93

Mx6 (z) to the coronal plane (mm)

0.03

1.00

−0.34

0.41

0.86

Md6 (z) to the coronal plane (mm)

0.00

0.98

−0.37

0.36

0.99

Midface

Or (z) to the coronal plane (mm)

−0.02

1.48

−0.58

0.53

0.93

Go (z) to the coronal plane (mm)

0.06

1.66

−0.56

0.68

0.84

Mandible

CdS (z) to the coronal plane (mm)

0.10

2.35

−0.78

0.97

0.82

CdL (z) to the coronal plane (mm)

0.02

2.12

−0.77

0.81

0.96

CdM (z) to the coronal plane (mm)

0.13

2.33

−0.74

1.00

0.77

CdA (z) to the coronal plane (mm)

−0.54

2.11

−1.32

0.25

0.17

CdP (z) to the coronal plane (mm)

−0.07

2.01

−0.82

0.68

0.84

Temporal bone

GlS (z) to the coronal plane (mm)

−0.08

2.39

−0.97

0.81

0.86

GlA (z) to the coronal plane (mm)

−0.82

2.24

−1.65

0.02

0.06

Po (z) to the coronal plane (mm)

0.19

1.72

−0.45

0.83

0.54

Significant differences were seen within the condylar and glenoid fossa points in the measurements to the sagittal plane (Table 5). Among the condylar measurements, the medial pole (CdM), anterior pole (CdA), and posterior pole (CdP) were all found to be more laterally placed on the right side compared to the left, with a discrepancy of 0.62 ± 1.28 mm for CdM (p < 0.05), 1.34 ± 1.47 mm for CdA (p < 0.001), and 0.9 ± 1.51 mm for CdP (p < 0.01). The GlA was also more laterally placed, by 1.73 ± 1.52 mm, on the right side relative to the left side (p < 0.001).
Table 5

Orthogonal left-right differences from sagittal plane



Variable

Mean

SD

95%confidence interval

pvalue

Lower

Upper

Dental

Mx3 (x) to the saggital plane (mm)

−0.02

1.11

−0.43

0.40

0.94

Md3 (x) to the saggital plane (mm)

−0.25

1.46

−0.79

0.30

0.36

Mx6 (x) to the saggital plane (mm)

0.25

1.13

−0.17

0.67

0.24

Md6 (x) to the saggital plane (mm)

0.29

1.07

−0.11

0.69

0.16

Midface

Or (x) to the saggital plane (mm)

−0.05

1.70

−0.69

0.58

0.87

Go (x) to the saggital plane (mm)

0.48

1.89

−0.22

1.19

0.17

Mandible

CdS (x) to the saggital plane (mm)

−0.19

1.81

−0.86

0.49

0.57

CdL (x) to the saggital plane (mm)

−0.55

1.56

−1.14

0.03

0.06

CdM (x) to the saggital plane (mm)

−0.62

1.28

−1.10

−0.14

0.013*

CdA (x) to the saggital plane (mm)

−1.34

1.47

−1.89

−0.80

0.0001***

CdP (x) to the saggital plane (mm)

−0.90

1.51

−1.47

−0.34

0.003**

Temporal bone

GlS (x) to the saggital plane (mm)

0.24

1.54

−0.33

0.81

0.4

GlA (x) to the saggital plane (mm)

−1.73

1.52

−2.30

−1.16

0.0001***

Po (x) to the saggital plane (mm)

−0.35

1.66

−0.97

0.27

0.25

*p < 0.05, **p < 0.01, ***p < 0.001.

Midline structures were also measured to the sagittal plane (Table 6). Posterior nasal spine (PNS) was found to be 0.22 ± 0.54 mm to the right of the sagittal plane. No significance was noted with other midline structures.
Table 6

Orthogonal measurements of midline structures to sagittal plane



Variable

Mean

SD

95%confidence interval

pvalue

Lower

Upper

Dental

Mx1 (x) to the saggital plane (mm)

−0.11

0.51

−0.3

0.09

0.26

Md1 (x) to the saggital plane (mm)

−0.11

0.56

−0.32

0.1

0.29

Midface

ANS (x) to the saggital plane (mm)

−0.16

0.48

−0.34

0.02

0.08

PNS (x) to the saggital plane (mm)

−0.22

0.54

−0.43

−0.02

0.032*

Mandible

Me (x) to the saggital plane (mm)

0.11

0.68

−0.14

0.36

0.38

Pg (x) to the saggital plane (mm)

0.2

0.67

−0.05

0.45

0.11

*p < 0.05.

For absolute measurements, distances between two landmarks on each side were measured and the difference compared between the right and left sides (Table 7). Dental midline differential (MLD), defined as the absolute difference between the incisal embrasure of the maxillary central incisors (Mx1) and the incisal embrasure of the mandibular incisors (Md1) from the sagittal plane, showed a significant discrepancy of 0.15 ± 0.20 mm (p < 0.0001). Maxillary (MXA) and mandibular (MDA) arch lengths were found to be longer on the left side (p < 0.05), with the MXA left-right differential being 0.28 ± 0.66 mm and MDA equivalent to 0.33 ± 0.68 mm. Ramus height, defined as the distance between the most superior point of the condylar head (CdS) and gonion (Go), was found to be significantly greater on the right side (p < 0.05) using both 3D (RH3) and 2D (RH2) calculations. Absolute measurement differences between the left and right sides were 0.81 ± 1.65 for RH3 and 0.75 ± 1.60 mm for RH2. From the frontal aspect, ramus inclination (RI), measured as the angulation between most lateral point on the condylar head (CdL) and Go to the sagittal plane was significantly more obtuse on the right side by 1.22° ± 2.92° (p < 0.05).
Table 7

Absolute measurements of left-right differences

Variable

Mean

SD

95%confidence interval

pvalue

Lower

Upper

A-P molar differential (mm)

0.04

0.28

−0.07

0.14

0.484

Midline differential (mm)

0.15

0.20

0.07

0.23

0.000****

Maxillary arch length (mm)

0.28

0.66

0.04

0.53

0.025*

Mandibular arch length (mm)

0.33

0.68

0.08

0.58

0.012*

Mandibular length in 3D (mm)

−0.43

1.53

−1.00

0.14

0.132

Manibular length in 2D (mm)

−0.21

1.53

−0.78

0.36

0.452

Ramus height in 3D (mm)

−0.81

1.65

−1.42

−0.19

0.012*

Ramus height in 2D (mm)

−0.75

1.60

−1.34

−0.15

0.016*

Corpus length in 3D (mm)

0.09

1.27

−0.38

0.57

0.690

Corpus length in 2D (mm)

0.08

1.67

−0.55

0.70

0.801

Gonial angle (°)

0.48

2.48

−0.44

1.40

0.297

Mandibular plane angle (°)

0.57

1.66

−0.06

1.19

0.073

Ramus inclination to the saggital plane (°)

−1.22

2.92

−2.32

−0.13

0.029*

Mediolateral diameter of the condylar head in 3D (mm)

0.06

1.22

−0.39

0.52

0.781

Mediolateral diameter of the condylar head in 2D (mm)

0.07

1.22

−0.38

0.52

0.752

Anteroposterior diameter of the condylar head in 3D (mm)

−0.24

0.85

−0.55

0.08

0.141

Anteroposterior diameter of the condylar head in 2D (mm)

−0.23

0.86

−0.55

0.09

0.149

Superior joint space in 3D (mm)

−0.03

0.78

−0.32

0.26

0.820

Superior joint space in 2D (mm)

0.08

0.63

−0.16

0.31

0.505

*p < 0.05, ****p < 0.0001.

Discussion

The primary objective of this study was to measure the degree of asymmetry in patients who were otherwise defined as symmetric by clinical and radiographic examinations. The findings of this study show that skeletal asymmetries, while minor, may exist in otherwise clinically symmetric patients, confirming previous studies using 2D imaging and photography [6, 13, 14]. With the advent of CBCT technology, these small discrepancies can be localized to distinct sites. This data alludes to the possibility that during even the most tightly coupled processes, minor right-left discrepancies may be reflections of minute skeletal compensations that occur as growth is directed.

The asymmetries from this sample of patients showed either a mild right-side predominance or a mild left-side deficiency in the auriculo-temporal and condylar regions. The glenoid fossa was more laterally displaced on the right side and, along with the porion, was more superior in relation to the axial plane compared to the left side. Additionally, the condylar points were all more laterally displaced and the ramus heights were longer on the right side in both 3D and 2D. The ramus inclination was also more obtuse on the right side compared to the left, and the PNS point was shown to lie to the right of the midsagittal plane. The only measurements increased on the left side were maxillary and mandibular arch lengths. The slight right-side predominance seen in this study is consistent with a number of studies which have also shown an increased tendency for right side laterality, albeit with varying degrees of significance [6, 8, 13, 15, 16].

While the MLD showed a minor discrepancy in the maxillary and mandibular midlines, it should be noted that the lateral positions of menton (Me) and pogonion (Pg) relative to the midsagittal plane were not significant. This suggests that other compensations are likely to have occurred which adapted to the increased laterality and different vertical positions of the glenoid fossa and condylar points.

The intricate biological processes that direct growth and result in skeletal asymmetries have yet to be fully dissected. In his classic work, Woo proposed that minor asymmetries were due to skeletal compensations for asymmetric growth of the brain [17] and Burke theorized that right-left discrepancies were adaptive changes in response to asymmetric muscular and masticatory function [18]. At the molecular level, a number of genes and factors have been associated with asymmetric growth, identified in models of severe asymmetry associated with such syndromes as hemifacial microsomia, craniosynostosis and craniofacial clefts [19]. While genes, like Msx1, Goosecoid, TWIST, and TCOF1 have been linked to a number of craniofacial syndromes, no single gene has been identified as the sole cause of the skeletal abnormalities [2023]. It is possible that a number of genes found within similar chromosomal loci are involved in these syndromes due to compromise during the embryonic period. Protein factors such as IGF-I, BMP-2 and TGF-β1 have been shown to be highly expressed in specific regions of the condylar cartilage in patients with condylar hyperplasia, a primary cause of skeletal asymmetry [24]. Proper functioning and regulation of these genes and factors is likely to promote normal symmetric growth. It is possible that minor, localized gene expression differences or altered growth factor activity may result in the small skeletal discrepancies noted in the normal patients in this study. Further research is needed in this area to better understand the complex biologic pathways involved in normal growth and to determine which molecular alterations lead to increased degrees of asymmetry in patients.

This study was the first of its kind to utilize CBCT to evaluate asymmetries in a normal, Class I, adolescent population. Previous studies in Class III patients have shown a tendency towards significant asymmetry, specifically with deviation of the lateral position of menton to the mid-sagittal plane when measured on PA cephalograms [25]. A study by Sievers and colleagues using CBCT imaging showed minor asymmetries in Class I and Class II patients using an asymmetry index (AI), a mathematical derivation which combined measurements from each landmark to the x-, y-, and z-planes [26]. The degree of AI was similar between both groups, which were characterized according to ANB angle. A recent study of 10 human dry skulls defined as exhibiting apparent symmetry were also shown to have minor asymmetries by CBCT analysis, with measurements highly accurate when compared to the gold standard, physical measurements [8]. In the same study, PA cephalograms where shown to have inconsistencies in measurements, likely due to the difficulty in visualizing key structures in the 2D view.

In addition to the skeletal component, the soft tissue plays an important role in asymmetry and requires further study. A number of studies have used standardized photographs and stereophotogrammetry to assess soft tissue asymmetry [16, 18, 27]. A hierarchy for anatomic landmarks has been previously established for constructing the soft tissue midline, with the natural dental midline and the tip of philtrum being most reliable for measuring soft tissue asymmetries in 2D [28]. The tip of the nose and soft tissue nasion have been shown to be less reliable in photographic measurements. The accuracy of soft tissue measurements with CBCT enables 1:1 accuracy and the ability to more clearly define soft tissue landmarks through superimposition on cranial structures [29]. Soft tissue asymmetry has yet to be measured in class I patients with CBCT, and this would help further understand the soft-tissue compensations that overcome the minor skeletal discrepancies we observed in this study.

There were a number of limitations of this study that should be considered. The right-left discrepancies detected in this sample of patients were very minor, with most less than 1.0 mm. For this reason, there is potential for some of these differences to be attributed to methodological error. Firstly, correct orientation of the CBCT in all three planes could have been a source of error. The method of sequential reference plane selection, particularly the use of paired midfacial structures for the midsagittal plane, was based on previously published studies [30, 31]. While the sagittal plane was selected first, images also had to be corrected for roll to ensure the paired midfacial structures were correctly aligned vertically. The axial plane was then aligned for pitch and perpendicular to the sagittal plane followed by the coronal plane which was perpendicular to the sagittal and coronal planes and the best fit to the transporionic line. The ‘best fit’ of the three planes was determined by a single examiner at one timepoint. While the ICC for intrarater measurements was high, any minor inaccuracy in orientation of the CBCT at the initial stage could have resulted in some of the measured right-left differences seen in this study.

Landmark identification was another potential source of error in this study. Previous studies have shown the mediolateral dimension to be the least reproducible of the three dimensions with regards to landmark selection [26, 32]. Particular anatomic landmarks pose challenges due to variation in morphology and convexity, such as condylion, gonion, and porion and there can be a greater degree of variability in the selection as shown by intra- and interrater reliability measures [33, 34]. It is possible that utilizing a volumetric rendering view in conjunction with multiplanar views, as was used in this study, may minimize the degree of landmark selection error [35]. A number of the landmarks showing significant differences in this study were associated with these morphological challenges and thus could be skewed to show a right-left predominance or lack of predominance based on landmark selection.

The findings of this study reveal that very minor asymmetries may exist in otherwise symmetric patients, confirming previous studies that suggest that these discrepancies are normal and may be a reflection of a homeostatic mechanism during growth and bone remodeling.

Conclusions

Minor asymmetries are present in all planes by CBCT analysis in a normal, adolescent population. The craniofacial complex may have a natural compensatory mechanism to control the size and shape of specific tissues in order to maintain functional symmetry and homeostasis. Further studies are needed to better understand the soft tissue component to asymmetries in this population of subjects.

Declarations

Acknowledgements

We would like to thank Dr. Paul Rigali, Wallingford, CT and Dr. Carl Roy, Virginia Beach, VA for providing the CBCT data for this study and to Dr. William P. Neace former Assistant Professor in the Department of Psychology at the University of Hartford, Hartford, CT for performing the statistical analyses.

Disclosure

The authors would like to emphasize that the CBCT data analyzed in this study was acquired using existing records from two private offices. We in no way intend to promote the routine acquisition of CBCT images in orthodontic patients.

Authors’ Affiliations

(1)
Private Practice
(2)
Division of Orthodontics, Department of Craniofacial Sciences, School of Dental Medicine, University of Connecticut
(3)
Private Practice
(4)
Department of Craniofacial Sciences, Alumni Endowed Chair, School of Dental Medicine, University of Connecticut

References

  1. Proffit WR, White RP, Sarver DM: Contemporary treatment of dentofacial deformity. Mosby, Maryland Heights, Missouri; 2003.Google Scholar
  2. Bishara SE, Burkey PS, Kharouf JG: Dental and facial asymmetries: a review. Angle Orthod 1994, 64(2):89–98. doi:10.1043/0003–3219(1994)064<0089: DAFAAR>2.0.CO;2PubMedGoogle Scholar
  3. Pirttiniemi P: Normal and increased functional asymmetries in the craniofacial area. Acta Odontol Scand 1998, 56(6):342–5. 10.1080/000163598428284View ArticlePubMedGoogle Scholar
  4. Burstone CJ: Diagnosis and treatment planning of patients with asymmetries. Semin Orthod 1998, 4(3):153–64. 10.1016/S1073-8746(98)80017-0View ArticlePubMedGoogle Scholar
  5. Sheats RD, McGorray SP, Musmar Q, Wheeler TT, King GJ: Prevalence of orthodontic asymmetries. Semin Orthod 1998, 4(3):138–45. 10.1016/S1073-8746(98)80015-7View ArticlePubMedGoogle Scholar
  6. Shah SM, Joshi MR: An assessment of asymmetry in the normal craniofacial complex. Angle Orthod 1978, 48(2):8–141. doi:10.1043/0003–3219(1978)048<0141: AAOAIT>2.0.CO;2Google Scholar
  7. Nanda R, Snodell SF, Bollu P: Transverse growth of maxilla and mandible. Semin Orthod 2012, 18(2):100–17. [https://doi.org/10.1053/j.sodo.2011.10.007]View ArticleGoogle Scholar
  8. de Moraes ME, Hollender LG, Chen CS, Moraes LC, Balducci I: Evaluating craniofacial asymmetry with digital cephalometric images and cone-beam computed tomography. Am J Orthod Dentofacial Orthop 2011, 139(6):e523–31. [https://doi.org/10.1016/j.ajodo.2010.10.020]View ArticlePubMedGoogle Scholar
  9. AlHadidi A, Cevidanes LH, Mol A, Ludlow J, Styner M: Comparison of two methods for quantitative assessment of mandibular asymmetry using cone beam computed tomography image volumes. Dentomaxillofac Radiol 2011, 40(6):351–7. [https://doi.org/10.1259/dmfr/13993523]PubMed CentralView ArticlePubMedGoogle Scholar
  10. Alhadidi A, Cevidanes LH, Paniagua B, Cook R, Festy F, Tyndall D: 3D quantification of mandibular asymmetry using the SPHARM-PDM tool box. Int J Comput Assist Radiol Surg 2012, 7(2):265–71. [https://doi.org/10.1007/s11548-011-0665-2]PubMed CentralView ArticlePubMedGoogle Scholar
  11. Damstra J, Fourie Z, Ren Y: Evaluation and comparison of postero-anterior cephalograms and cone-beam computed tomography images for the detection of mandibular asymmetry. Eur J Orthod 2013, 35(1):45–50. [https://doi.org/10.1093/ejo/cjr045]View ArticlePubMedGoogle Scholar
  12. Sanders DA, Rigali PH, Neace WP, Uribe F, Nanda R: Skeletal and dental asymmetries in Class II subdivision malocclusions using cone-beam computed tomography. Am J Orthod Dentofacial Orthop 2010, 138(5):542. e1–20; discussion −3. doi:10.1016/j.ajodo.2010.02.027View ArticlePubMedGoogle Scholar
  13. Peck S, Peck L, Kataja M: Skeletal asymmetry in esthetically pleasing faces. Angle Orthod 1991, 61(1):8–43. doi:10.1043/0003–3219(1991)061<0043: SAIEPF>2.0.CO;2Google Scholar
  14. Vig PS, Hewitt AB: Asymmetry of the human facial skeleton. Angle Orthod 1975, 45(2):9–125. doi:10.1043/0003–3219(1975)045<0125: AOTHFS>2.0.CO;2Google Scholar
  15. Farkas LG, Cheung G: Facial asymmetry in healthy North American Caucasians. An anthropometrical study. Angle Orthod 1981, 51(1):7–70. doi:10.1043/0003–3219(1981)051<0070: FAIHNA>2.0.CO;2Google Scholar
  16. Haraguchi S, Iguchi Y, Takada K: Asymmetry of the face in orthodontic patients. Angle Orthod 2008, 78(3):421–6. [https://doi.org/10.2319/022107-85.1]View ArticlePubMedGoogle Scholar
  17. Woo TL: On the asymmetry of the human skull. Biometrika. 1931, 22: 21.View ArticleGoogle Scholar
  18. Burke PH: Stereophotogrammetric measurement of normal facial asymmetry in children. Hum Biol 1971, 43(4):536–48.PubMedGoogle Scholar
  19. Kronmiller JE: Development of asymmetries. Semin Orthod 1998, 4(3):134–7. 10.1016/S1073-8746(98)80014-5View ArticlePubMedGoogle Scholar
  20. el Ghouzzi V, Le Merrer M, Perrin-Schmitt F, Lajeunie E, Benit P, Renier D, Bourgeois P, Bolcato-Bellemin AL, Munnich A, Bonaventure J: Mutations of the TWIST gene in the Saethre-Chotzen syndrome. Nat Genet 1997, 15(1):42–6. [https://doi.org/10.1038/ng0197-42]View ArticlePubMedGoogle Scholar
  21. Kelberman D, Tyson J, Chandler DC, McInerney AM, Slee J, Albert D, Aymat A, Botma M, Calvert M, Goldblatt J, Haan EA, Laing NG, Lim J, Malcolm S, Singer SL, Winter RM, Bitner-Glindzicz M: Hemifacial microsomia: progress in understanding the genetic basis of a complex malformation syndrome. Hum Genet. 2001, 109(6):638–645. doi:10.1007/s00439–001–0626-xView ArticlePubMedGoogle Scholar
  22. Satokata I, Maas R: Msx1 deficient mice exhibit cleft palate and abnormalities of craniofacial and tooth development. Nat Genet 1994, 6(4):348–56. [https://doi.org/10.1038/ng0494-348]View ArticlePubMedGoogle Scholar
  23. Su PH, Liu YF, Yu JS, Chen JY, Chen SJ, Lai YJ: Facial asymmetry and clinical manifestations in patients with novel insertion of the TCOF1 gene. Clin Genet 2011, 82(5):460–5. [https://doi.org/10.1111/j.1399-0004.2011.01765.x]View ArticlePubMedGoogle Scholar
  24. Meng Q, Long X, Deng M, Cai H, Li J: The expressions of IGF-1, BMP-2 and TGF-beta1 in cartilage of condylar hyperplasia. J Oral Rehabil 2011, 38(1):34–40. [https://doi.org/10.1111/j.1365-2842.2010.02125.x]View ArticlePubMedGoogle Scholar
  25. Haraguchi S, Takada K, Yasuda Y: Facial asymmetry in subjects with skeletal Class III deformity. Angle Orthod 2002, 72(1):28–35. doi:10.1043/0003–3219(2002)072<0028: FAISWS>2.0.CO;2PubMedGoogle Scholar
  26. Sievers MM, Larson BE, Gaillard PR, Wey A: Asymmetry assessment using cone beam CT. A Class I and Class II patient comparison. Angle Orthod. 2012, 82(3):410–7. [https://doi.org/10.2319/041711-271.1]Google Scholar
  27. Severt TR, Proffit WR: The prevalence of facial asymmetry in the dentofacial deformities population at the University of North Carolina. Int J Adult Orthodon Orthognath Surg 1997, 12(3):171–6.PubMedGoogle Scholar
  28. Bidra AS, Uribe F, Taylor TD, Agar JR, Rungruanganunt P, Neace WP: The relationship of facial anatomic landmarks with midlines of the face and mouth. J Prosthet Dent 2009, 102(2):94–103. [https://doi.org/10.1016/S0022-3913(09)60117-7]View ArticlePubMedGoogle Scholar
  29. Cevidanes LH, Motta A, Proffit WR, Ackerman JL, Styner M: Cranial base superimposition for 3-dimensional evaluation of soft-tissue changes. Am J Orthod Dentofacial Orthop 2010, 137(4 Suppl):S120–9. [https://doi.org/10.1016/j.ajodo.2009.04.021]PubMed CentralView ArticlePubMedGoogle Scholar
  30. Swennen GR, Schutyser F, Barth EL, De Groeve P, De Mey A: A new method of 3-D cephalometry Part I: the anatomic Cartesian 3-D reference system. J Craniofac Surg 2006, 17(2):314–25. 10.1097/00001665-200603000-00019View ArticlePubMedGoogle Scholar
  31. van Vlijmen OJ, Berge SJ, Swennen GR, Bronkhorst EM, Katsaros C, Kuijpers-Jagtman AM: Comparison of cephalometric radiographs obtained from cone-beam computed tomography scans and conventional radiographs. J Oral Maxillofac Surg 2009, 67(1):92–7. [https://doi.org/10.1016/j.joms.2008.04.025]View ArticlePubMedGoogle Scholar
  32. Ludlow JB, Gubler M, Cevidanes L, Mol A: Precision of cephalometric landmark identification: cone-beam computed tomography vs conventional cephalometric views. Am J Orthod Dentofacial Orthop 2009, 136(3):312. e1–10; discussion −3. doi:10.1016/j.ajodo.2009.04.009PubMed CentralView ArticlePubMedGoogle Scholar
  33. Lagravere MO, Low C, Flores-Mir C, Chung R, Carey JP, Heo G, Major PW: Intraexaminer and interexaminer reliabilities of landmark identification on digitized lateral cephalograms and formatted 3-dimensional cone-beam computerized tomography images. Am J Orthod Dentofacial Orthop 2010, 137(5):598–604. [https://doi.org/10.1016/j.ajodo.2008.07.018]View ArticlePubMedGoogle Scholar
  34. Schlicher W, Nielsen I, Huang JC, Maki K, Hatcher DC, Miller AJ: Consistency and precision of landmark identification in three-dimensional cone beam computed tomography scans. Eur J Orthod 2012, 34(3):263–75. [https://doi.org/10.1093/ejo/cjq144]View ArticlePubMedGoogle Scholar
  35. Periago DR, Scarfe WC, Moshiri M, Scheetz JP, Silveira AM, Farman AG: Linear accuracy and reliability of cone beam CT derived 3-dimensional images constructed using an orthodontic volumetric rendering program. Angle Orthod 2008, 78(3):387–95. [https://doi.org/10.2319/122106-52.1]View ArticlePubMedGoogle Scholar

Copyright

© Sanders et al.; licensee Springer 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
