The effect of the local administration of biological substances on the rate of orthodontic tooth movement: a systematic review of human studies

Progress in Orthodontics volume 22, Article number: 5 (2021) Cite this article

Abstract

Background

The influence of different biological agents on the rate of orthodontic tooth movement (OTM) has been extensively reviewed in animal studies with conflicting results. These findings cannot be extrapolated from animals to humans. Therefore, we aimed to systematically investigate the most up-to-date available evidence of human studies regarding the effect of the administration of different biological substances on the rate of orthodontic tooth movement.

Methods

A total of 8 databases were searched until the 16th of June 2020 without restrictions. Controlled randomized and non-randomized human clinical studies assessing the effect of biological substances on the rate of OTM were included. ROBINS-I and the Cochrane Risk of Bias tools were used. Reporting of this review was based on the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines.

Results

A total of 11 studies (6 randomized clinical trials and 5 prospective clinical trials) were identified for inclusion. Local injections of prostaglandin E1 and vitamin C exerted a positive influence on the rate of OTM; vitamin D showed variable effects. The use of platelet-rich plasma and its derivatives showed inconsistent results, while the local use of human relaxin hormone showed no significant effects on the rate of OTM.

Limitations

The limited and variable observation periods after the administration of the biological substances, the high and medium risk of bias assessment for some included studies, the variable concentrations of the assessed biological agents, the different experimental designs and teeth evaluated, and the variety of measurement tools have hampered the quantitative assessment of the results as originally planned.

Conclusions and implications

Despite the methodological limitations of the included studies, this systematic review provides an important overview of the effects of a variety of biological agents on the rate of tooth movement and elucidates the deficiencies in the clinical studies that have been conducted so far to evaluate the effectiveness of these agents in humans, providing some guidelines for future robust research.

Trial registration

PROSPERO (CRD42020168481, www.crd.york.ac.uk/prospero)

Background

Orthodontic tooth movement (OTM) occurs because of mechanical stimulus sequenced by remodeling of the alveolar bone and periodontal ligament (PDL). Bone remodeling is a process of bone resorption on the pressure sites and bone formation on the tension sites [1]. Forces applied to the teeth cause a local alteration in blood flow which in turn leads to the release of different inflammatory mediators such as cytokines, growth factors, neurotransmitters, colony-stimulating factors, and arachidonic acid metabolites [2, 3]. These in turn play an integral role in bone remodeling and subsequently cause tooth movement [3].

Orthodontic research has been heavily focused on accelerating the rate of tooth movement due to high demands from patients and clinicians [4]. Lengthy treatment duration requires a long commitment by patients and may lead to possible irreversible side effects such as external apical root resorption, white spot lesions, and dental caries [4,5,6,7]. Approaches that have been attempted to enhance the rate of (OTM) can be broadly categorized as biological, biomechanical, physical, and surgical [8,9,10].

Several animal studies have assessed the influence of biological substances on the rate of OTM, demonstrating favorable results [11]. Prostaglandins (PG) were among the first and most evaluated biological agents for accelerated OTM [12, 13]. Human relaxin hormone (HRH) has shown to decrease periodontal ligament organization in rats [14, 15], but yielded conflicting results in terms of its effects on OTM [16, 17]. Vitamin D (Vit D) was also studied in animals and demonstrated an increase in the number of osteoclasts, leading to acceleration of tooth movement [18]. In addition, vitamin C (Vit C) [19] and platelet-rich plasma (PRP) [20, 21] have also shown to increase the rate of OTM in animal models. However, animal data does not permit direct inferences to human scenarios [22, 23].

In consequence, it is not clear which substances may significantly affect clinical practice, and despite the promising results in animal studies, human prospective studies have reported conflicting views on the efficacy of biological substances on the acceleration of OTM [24,25,26]. The local administration of PG appeared to accelerate the rate of experimental tooth movement clinically [25, 27]. While the local administration of HRH showed no effect on the rate of tooth movement [28].The administration of other agents like Vit D showed an acceleratory response in a dose-dependent manner in one trial [26] and a decreased rate in orthodontic tooth movement in another [29]. In addition, PRP has shown effects that varied between studies [30,31,32].

Objective

This systematic review aimed to provide an overview of the most used biological agents to accelerate tooth movement that has been experimented clinically in the literature and to describe their effectiveness. Additionally, the goal was to critically evaluate the experimental methodologies and outcome assessment methods of these studies.

Materials and methods

Protocol and registration

The guidelines in the Preferred Reporting Items for Systematic review and Meta-Analysis Protocols (PRISMA-P) statement [33] were used to develop a protocol that was registered in PROSPERO (CRD42020168481) [34]. The present systematic review was conducted according to the guidelines of the Cochrane Handbook for Systematic Reviews of Interventions version 6 [35].

Eligibility criteria

The eligibility criteria for the participants, intervention, comparison, outcomes, and study design domains (PICOS) are presented in Table 1. We reviewed experimental prospective controlled studies (randomized and non-randomized) involving healthy patients undergoing active orthodontic treatment. The rate of tooth movement had to be investigated after the administration of the biological substance. Comparisons were made to the placebo intervention, no administration, or different dosages of the investigated substance. Studies comparing different biological substances without the presence of a placebo or no administration group, non-comparative studies, reviews, systematic reviews, and meta-analyses were excluded.

Table 1 Eligibility criteria for the present systematic review
Full size table

Information sources and search strategy

A health sciences librarian searched the whole content of 8 databases (that included grey literature) until the 16th of June 2020. The strategies were developed by the health sciences librarian and were based on the MEDLINE search Table 2. No restrictions were imposed (status or date of publication and language). The reference lists of the included and excluded studies, the retrieved reviews, and other relevant articles were searched also.

Table 2 Strategies for database searches (up to June 16th, 2020)
Full size table

Study selection

The titles and abstracts of the retrieved records were assessed independently and in duplicate, for inclusion, by two authors (AS and AM). The same procedure was repeated for the full text of potentially included studies. Author (GV) settled any disagreements, and records of the decisions were kept. The extent of agreement between assessors was not calculated with kappa statistics as it is not recommended [35].

Data collection and data items

Data extraction followed the previously described procedure. A customized data collection form was created and used to gather information from the selected studies. This information included authors, year of publication, type of studies, details of the interventions, characteristics of participants, duration of treatment, and outcome measures.

Risk of bias in individual studies

The ROBINS-I for non-randomized [36] and the Cochrane Risk of Bias Tool for randomized studies [37] were used to assess the risk of bias using the same procedures. Summaries of the risk of bias within the study were produced by adhering to the Higgins et al. [35] approach.

Summary measures and synthesis of results

As an adequate amount of information and number of studies regarding each of the studied biological agents were not retrieved, quantitative synthesis of results was not carried out, although this was originally planned [35, 38].

Risk of bias across studies and additional analyses

Although pre-planned, analyses for “small-study effects” and publication bias, as well as exploratory subgroup analyses, were not conducted because we could not identify a sufficient number of studies [37] .The GRADE approach (Grading of Recommendation, Assessment, Development and Evaluation) was used to appraise the quality of evidence [39].

Results

Study selection

Initially, 1234 records were identified through database searching, and 458 additional records were identified through different databases. One thousand one hundred seventy-four records resulted after the removal of the duplicates; they were screened, and a total of 11 studies were identified for inclusion in the systematic review (Fig. 1).

Figure 1
figure 1

PRISMA

Full size image

Study characteristics

Table 3 presents the characteristics of the studies included. Out of 11 studies, three tested PG [25, 27, 40], three tested Vit D [26, 41, 43], one examined HRH [28], one examined leukocyte platelet-rich fibrin (LPRF) [31], one examined platelet-rich fibrin (PRF) [30], one examined PRP [32], and one examined Vit C [42]. Six were randomized controlled trials (RCT) [26, 28, 31, 32, 42, 43] including four studies with split mouth design [26, 31, 32, 43]. Five studies [25, 27, 30, 40, 41] were prospective clinical trials with split mouth study design. The described studies had experiments that lasted between 3 weeks (minimum observation period) [26] and 6 months (maximum observation period) [30]. All of them had male and female subjects in their sample population except for 2 studies that did not specify the gender [26, 43].

Table 3 Study characteristics: participants (sample size, demographic information), intervention (orthodontic treatment), observation, comparison (biological substance), dose and route of administration, outcome (rate of tooth movement), and study design
Full size table

Mean age of the included subjects ranged between 11.8 [27] and 34 years old [42]. Sample size calculation was conducted in only 3 studies [30,31,32]. Malocclusion was not specified in the majority of the studies [25, 27, 30,31,32, 40, 41]. Coil springs and elastomeric chains were used for canine retraction [26, 30,31,32, 40, 41, 43], elastomeric chains extended between the lingual surfaces of the opposing upper first premolars [25] and lingual arches with soldered double springs [27] were used for transverse premolar movements, and clear aligners were used in one study for incisor alignment [28]. The rate of tooth movement was assessed on stone casts [30, 31, 43], digital casts superimpositions [28, 32], cone beam computed tomography scans [41], occlusograms [40], photographs [25], direct clinical assessment [26, 27], and clinical evaluation using panoramic and occlusal radiographs [42].

Risk of bias within studies

Tables 4 and 5 contain a summary of the risk of bias assessment. Three of the RCTs [26, 31, 42] were assessed as having some concerns in their overall risk of bias, mainly due to the lack of the concealed allocation in the randomization process. As for the non-randomized clinical trials, the overall assessment for the risk of bias was serious for 2 studies [25, 27] and medium for the other three [30, 40, 41], indicating poor reporting and experimental design of these studies.

Table 4 Summary of risk of bias assessment for non-randomized studies-ROBINS-1 tool
Full size table
Table 5 Summary of risk of bias assessment for randomized studies—The Cochrane’s Collaboration’s tool
Full size table

Results of individual studies

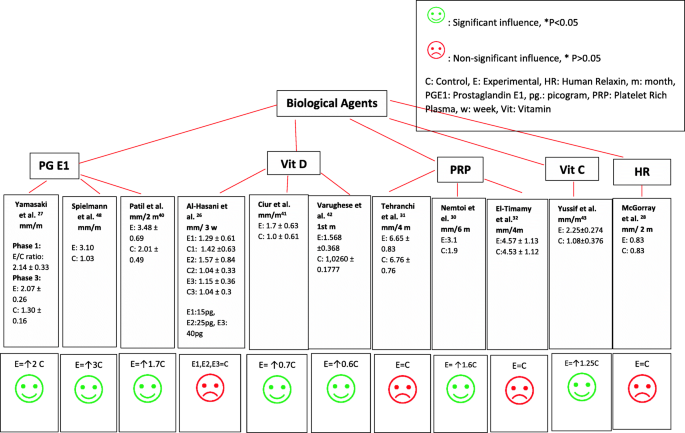

Figure 2 illustrates the overall clinical effects of administering the biological agents in all included experiments. Despite the different observation periods, concentrations used and frequency of injections, local administration of PGE1 was found to exert an increasing effect on the rate of OTM which was statistically significant (P < 0.05) in all included three studies [25, 27, 40]. Vit D showed conflicting results. Two studies reported a positive influence on the rate of OTM [41, 43]. On the other hand, one study which compared 3 different experimental groups, each using different concentrations of Vit D (15 pg, 25 pg, and 40 pg), showed non-significant effects in all three groups compared to the controls [26]. HRH showed no significant effect on accelerating tooth movement using aligners [28]. On the other hand, PRP derivatives showed positive effects in a study that utilized platelet-rich fibrin (PRF) in extraction sockets [30] and non-significant results in the other two [31, 32]. Vit C illustrated a positive influence on the rate of tooth movement when injected for canine retraction [42].

Figure 2
figure 2

Effects of biologics

Full size image

Risk of bias across studies and additional analyses

Analyses for “small-study effects,” publication bias, or subgroup analyses were not possible as discussed previously [33]. Regarding the effect of the investigated biological agents on the rate of orthodontic tooth movement, the quality of available evidence as graded by the Grading of Recommendations Assessment, Development and Evaluation (GRADE) approach using the GRADEpro Guideline Development Tool (Software) [44] (i.e., the confidence that we have that the true effect is more or less similar to the estimated effect) ranged between moderate (Vit D and C studies) to high (HRH and PRP studies) for the RCTs, mainly because of the lack of allocation concealment which introduced a selection bias to the trials graded as moderate. Concerns regarding the small sample size, inconsistency of the interventions and outcomes, and high risk of bias led further to downgrading the quality of evidence for the non-randomized controlled trials. This quality of evidence ranged between low and moderate in the final assessment of the confidence in the observed estimates (Tables 6 and 7).

Table 6 Quality of the available evidence on the rate of orthodontic tooth movement for the non-randomized trials
Full size table
Table 7 Quality of available evidence on the rate of orthodontic tooth movement for the RCT
Full size table

Discussion

Summary of evidence

Orthodontic tooth movement has been defined as “the result of a biologic response to interference in the physiologic equilibrium of the dentofacial complex by an externally applied force [45].” The sequence of cellular, molecular, and tissue-reaction events during orthodontic tooth movement has been extensively studied [46]. Several factors, alone or in combination, might influence remodeling activities and ultimately tooth displacement [1], and the alterations in bone turnover and density may affect the rate of movement. In this sense, many biological agents play a role in the inflammatory process and alter the pathways related to bone remodeling that accompanies OTM [45]. However, direct inference of information derived from animal experiments to human clinical settings may not be made [17,18,19,20,21]. Hence, this systematic review evaluated whether locally administered biological substances such as PG, HRH, Vit D, Vit C, PRP, and its derivatives can significantly accelerate OTM in humans.

On the basis of the collected studies, a variable effect on the rate of movement was detected between the different biological agents, with PG [25, 27, 40] and Vit C [42] causing a positive influence, HRH showing no influence [28], and Vit D and PRP and its derivatives exerting a variable dose-dependent influence [26] (Fig. 2). The set of retrieved data is limited, and the level of confidence in the observed estimates was deemed to be variable due to the limited number of studies that have assessed each agent, small sample sizes, different age groups, different appliances for tooth movement and methods of magnitude of tooth movement assessment, the high risk of bias for some of the investigations, and the different observational periods and frequencies of application for the biological agents.

Among the studied biological agents, PGs are the most significant in OTM acceleration as they stimulate both osteoclasts and osteoblasts. These PGs also elevate metalloproteinases’ levels and lead to decrease in the production of procollagen which is essential for bone and periodontal ligament remodeling [47]. Although the local administration of PG in the three non-randomized clinical trials included in this systematic review was found to exert an increasing effect on the rate of OTM by 1–2 mm per month [25, 27, 40], the results of the GRADE assessment revealed an overall certainty of evidence being moderate suggesting that the true effect could be markedly different from the estimated effect. This might be because these studies are non-randomized with small sample sizes and short observation periods that ranged between 1 [25, 27] and 2 months [40].

On the other hand, local injections of calcitriol, a Vit D metabolite, were shown to exert variable effects on the rate of OTM, but with a low to moderate level of confidence. Vit D plays an important role in calcium homeostasis with calcitonin and parathyroid hormone (PTH) and constitutes a potent modulator of bone metabolism [24]. The conflicting results between the studies on the effect of Vit D on accelerating tooth movement might be attributed to the fact that these studies utilized different concentrations for Vit D, namely 42 pg [41] and 50 pg [43]. Furthermore, Al-Hasani et al. [26] compared 3 different concentrations in the same study (15 pg, 25 pg, and 40 pg). Thus, there may be a differential impact of Vit D depending on the dose [47]. More importantly, the effects of Vit D on bone turnover depend on the stage of osteoblast differentiation [48]. It has been reported that normal levels of Vit D act via the vitamin D receptor (VDR) in mature osteoblasts, decreasing the receptor activator of nuclear factor kappa-Β ligand (RANKL)/osteoprotegerin (OPG) ratio and leading to reduction of osteoclastic bone resorption. Similarly, Vit D acts in mature osteoblasts increasing bone formation rate [24]. However, increased levels of Vit D act in less-mature osteoblasts elevating the RANKL/OPG ratio, thus stimulating osteoclastic bone resorption [49, 50]. Studies of conditional deletion of the VDR from the osteoblast lineage suggest that early osteoblastic cells may mediate an increase in bone resorption induced by Vit D [51]. Thus, the effect of Vit D is related to increasing the expression of RANKL by local cells and therefore activation of osteoclasts [52].

HRH is a peptide with strong effects on collagen turnover. It has been shown that it increases collagen in the tension sites and decreases it in the compression sites during orthodontic tooth movement [53, 54]. Its effects on remodeling soft tissue and on regulation of several mediators that stimulate osteoclast formation increased the attention of researchers in orthodontics [53]. Based on the findings of the present review, only one RCT assessed the local administration of HRH in humans [28]. It was not found to have any statistically significant effect on the rate of OTM. The GRADE assessment suggested that this estimate is close to the true effect. But the authors of this study suggested that the used local doses of HRH might have been too low to affect tooth movement. Previous studies on animals have produced contradictory outcomes. Madan et al. [14] measured the effect of HRH on orthodontic tooth movement and periodontal ligament (PDL) structures in rats and concluded that it does not accelerate OTM, although it can reduce the level of PDL organization and mechanical strength and increase tooth mobility at early time points. On the other hand, Liu et al. [17] administered HRH to young rats through either minipumps or subcutaneous injections and concluded that it may accelerate the early stages of orthodontic tooth movement in rats.

Concerning the local administration of PRP and its derivatives, only one non-randomized clinical trial that used PRF in the extraction sockets [30] showed significant increase in the rate of OTM. The other two RCTs, one that used PRP concentrate [32] and another that investigated LPRF [31], showed no significant effect on the rate of OTM. The different effects might be attributed to the different concentrations and delivery methods such as injections [32] and plugs in the extraction sockets [30, 31]; the various PRP presentations (PRF [30], LPRF [31], and PRP [32]); and the different observation periods (6 months for the PRF [30], 4 months for the LRPF [31], and 6 weeks for the PRP [32]). In a recent review, it was shown that the differences in the methods to create and activate PRP, the variable platelet concentrations used in different clinical studies, and different delivery methods make it impossible to directly compare clinical studies assessing the effects of PRP [55]. Regardless of the methodology, another issue with the use of PRP is the challenge of retaining PRP in a physiologically active state for long time, which mainly depends on the form of administration and leukocyte concentration [55, 56]. On the other hand, it has been illustrated that the combination of fibrins and cytokines within the PRF is a powerful bio-scaffold with an integrated reservoir of growth factors for tissue regeneration [57], which might be a reason why the rate of OTM was accelerated with the use of PRF [30] compared to the other 2 studies of PRP and its derivatives [31, 32]. The GRADE assessment suggested that this estimate is close to the true effect with high certainty of evidence for the RCTs and moderate certainty of evidence for the controlled trial.

The critical role of ascorbic acid (Vit C) in osteoclast stimulation in cell culture media has been confirmed in several investigations [58, 59]. The lack of Vit C halts osteogenesis and periodontal ligament organization [60]. Ascorbic acid deficiency inhibits degradation and regeneration of collagen fibers, which are important in orthodontic tooth movement [60]. Within the scope of this systematic review, a significant effect on the rate of canine traction resulted from the local injection of Vit C. However, the GRADE assessment suggested that this estimate is probably not close to the true effect, the risk of bias for this study was high, the sample size was small, and there were some concerns in the research methodology. Even though normal dietary ingestion of Vit C is needed for a healthy periodontium during orthodontics [61], it is still doubtful whether Vit C supplementation affects OTM clinically.

Strengths and limitations

This systematic review followed the standard guidelines with a comprehensive search strategy that included pertinent records. The strategies for the database search were comprehensive and covered until June 2020. There was no language restriction, and all steps were carried out independently and in duplicate. Settling any disagreement was carried out after consulting a third author. Care was taken to minimize bias as much as possible.

On the other hand, some limitations became clear because of the experimental designs of the studies and the characteristics of the data used for the review. This led to a moderate average rating for the quality of evidence. The scarcity in the relevant information, the moderate to low risk of bias assessment to many studies, the use of different biological agents, and the different observation periods made it difficult to perform a meta-analysis and additional analyses, even though initially planned.

The application of the biological agents has certain limitations. Majority of these agents have short half-life; therefore, multiple applications of the agent are required, which is not practical in clinical orthodontics. Further, the potential side effects that might result from the application of these agents over an extended period must be taken into consideration. The limited observation period for the studies hindered the evaluation of the true effect and potential harm of these agents if applied over the entire length of the orthodontic treatment. Hence, it would be interesting to conduct clinical studies with an observation period encompassing the full length of treatment. This would provide a more meaningful conclusion and give insight to the specific reduction in treatment duration to justify any of these adjunct therapies.

Finally, the sample size calculation was not performed in majority of the studies which poses limitations in terms of accuracy of the results and increases the chance of a type 2 error.

Conclusions

Based on the collected data, the local administration of the biological agents during orthodontic treatment may have different effects on the rate of tooth movement in humans. Although the assessed level of evidence reflects that these results should be regarded cautiously, the possible implications should not be ignored, and thorough clinical research is required to investigate their effect and efficacy for the entire length of orthodontic treatment.

Availability of data and materials

Not applicable.

Abbreviations

LPRF:

Leukocyte platelet-rich fibrin

OPG:

Osteoprotegerin

OTM:

Orthodontic tooth movement

PDL:

Periodontal ligament

PG:

Prostaglandins

PRP:

Platelet-rich plasma

PRF:

Platelet-rich fibrin

HRH:

Human relaxin hormone

RANKL:

Receptor activator of nuclear factor kappa-Β ligand

RCT:

Randomized clinical trials

VDR:

Vitamin D receptor

Vit D:

Vitamin D

Vit C:

Vitamin C

GRADE:

Grading of Recommendations Assessment, Development and Evaluation
